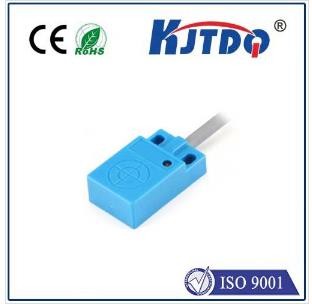

General specifications
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
Two-wire
|
|
Rated operating distance
|
3 mm
|
|
Installation
|
flush
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 2.4 mm
|
|
Actual operating distance
|
2.7 ... 3.3 mm typ.
|
|
Reduction factor rAl
|
0.45
|
|
Reduction factor rCu
|
0.35
|
|
Reduction factor r304
|
0.8
|
|
Reduction factor rBrass
|
0.5
|
|
Output type
|
2-wire
|
|
Nominal ratings
|
|
Operating voltage
|
5 ... 60 V DC
|
|
Switching frequency
|
0 ... 2000 Hz
|
|
Hysteresis
|
typ. 0.2 mm
|
|
Reverse polarity protection
|
reverse polarity protected
|
|
Short-circuit protection
|
no
|
|
Inductive overvoltage protection
|
yes
|
|
Voltage drop
|
≤ 4 V
|
|
Voltage drop at IL
|
|
|
|
Voltage drop IL = 10 mA, switching element on
|
3.4 ... 3.9 V typ. 3.6 V
|
|
Operating current
|
4 ... 100 mA
|
|
Lowest operating current
|
4 mA
|
|
Off-state current
|
0.4 ... 0.55 mA typ. 0.46 mA
|
|
Time delay before availability
|
≤ 1 ms
|
|
Switching state indicator
|
LED, yellow
|
|
Limit data
|
|
Tightening torque, fastening screws
|
0.4 Nm
|
|
Functional safety related parameters
|
|
MTTFd
|
1552 a
|
|
Mission Time (TM)
|
20 a
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, General Purpose
|
|
CCC approval
|
Certified by China Compulsory Certification (CCC)
|
|
Ambient conditions
|
|
Ambient temperature
|
-25 ... 85 °C (-13 ... 185 °F)
|
|
Mechanical specifications
|
|
Connection type
|
cable PVC , 130 mm
|
|
Core cross section
|
0.14 mm2
|
|
Housing material
|
PBT
|
|
Sensing face
|
PBT
|
|
Degree of protection
|
IP67
|
|
Cable
|
|
|
|
Cable diameter
|
3 mm ± 0.2 mm
|
|
|
Bending radius
|
> 10 x cable diameter
|
|
Mass
|
7.5 g
|
|
Dimensions
|
|
|
|
Height
|
10.2 mm
|
|
|
Width
|
27.8 mm
|
|
|
Length
|
16 mm
|
