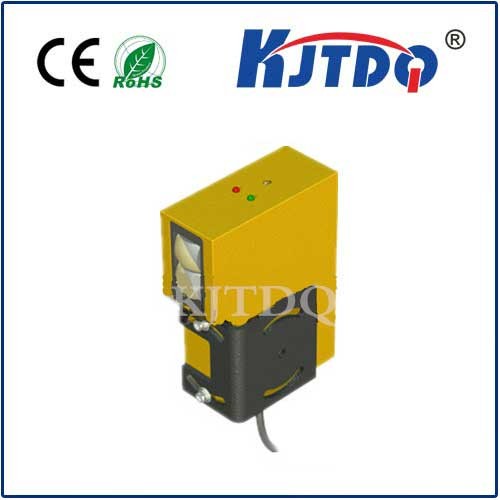

KJT-Visible red light cold metal detector

Products

KJT-Visible red light cold metal detector

  • Shell style:Square
  • Working Power:DC12V, DC24V, A110CV, A220CV; ±10% rated voltage value
  • Operating temperature:-25℃~+70℃
  • Product Detail

Cold metal detectors are mainly used at metallurgical industrial production line sites. By detecting the movement position of the workpiece, it outputs a switching control signal (contact or level signal) to participate in automatic control.

Cold metal detectors can be divided into two types according to the luminous light source: visible red light cold metal detectors and infrared light cold metal detectors.

Cold metal detectors can be divided into: feedback reflection type (R), through-beam type (T), and direct reflection type (D) according to the detection form.

1



Shell Style Square
Working Power

DC12V、DC24V、A110CV、A220CV;±10%

Rated voltage value

Operating temperature -25℃~+70℃
Detection method Reflective(R) through-beam(T)

direct

 reflective(D)

Detection distance

12m (SP-17 reflector)

6m (SP-18 type reflector

15m ≤1.2m
OutPut contact(Z)
Contact capacity:AC250V/5A;DC30V/5A
level 12V Load current 100mA PNP NO:A(P);PNP NC:B(P)
Load current 100mA NPN NO:A(N);NPN NC:B(N)
24V
Load current 100mA PNP NO:C(P);PNP NC:D(P)
Load current 100mA NPN NO:C(N);NPN NC:C(N)
Optical isolation

Max input working voltage≤DC27V,Load

 current 100mA

indicator light ≥20MΩ(DC 500V)
Insulation resistance ≤5W
Power
contact<20ms;Levels and Isolation<2ms
Response time incandescent lamp 10000Lx
Anti-light interference Instantaneous hand rotation, from low to high
Sensitivity DC input polarity protection, level output short circuit and overload protection
operating angle Azimuth angle can be adjusted arbitrarily, pitch angle±45°
Dimensions(Length×width×height) 185mm×116mm×73mm

2


7GAI

8GAI

3

  •   9GAI

4
