Inductive sensor NBB15-U1-E1

Inductive proximity sensor

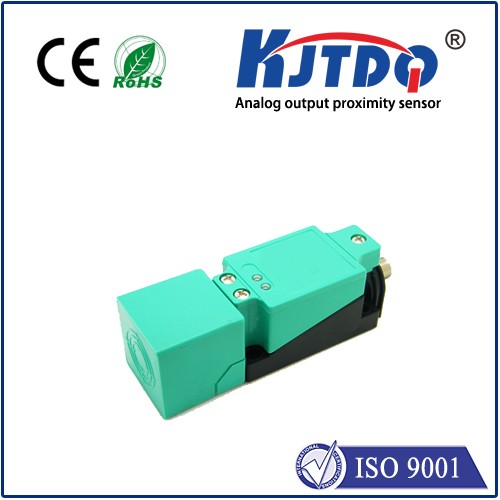

Inductive sensor NBB15-U1-E1

  • Sensor head bidirectional and rotatable
  • 4 LEDs indicator for 360° visibility
  • 15 mm flush
  • Product Detail

Datasheet excerpt: Technical data of  NBB15-U1-E1

General specifications
Switching function Normally closed (NC)
Output type NPN
Rated operating distance 15 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 12.15 mm
Actual operating distance 13.5 ... 16.5 mm typ. 15 mm
Reduction factor rAl 0.33
Reduction factor rCu 0.31
Reduction factor r304 0.74
Reduction factor rBrass 0.41
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 560 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 20 mA
Time delay before availability 80 ms
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1460 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross section ≤ 2.5 mm2
Housing material PA/metal with epoxy powder coating
Sensing face PA
Housing base plastic
Degree of protection IP68 / IP69K
Mass 225 g
Dimensions
Height 40 mm
Width 40 mm
Length 118 mm
Note Tightening torque: 1.8 Nm (housing)

Classifications





System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
