Intelligent pressure controller is an intelligent digital display pressure measurement and control product integrating pressure measurement, display, output and control. The product is all-electronic structure, the front-end with Geli membrane oil-filled piezoresistive pressure sensors, by the high-precision A/D conversion, by the microprocessor arithmetic processing, on-site display, and the output of - road analog and four switching quantities

The intelligent digital pressure controller is flexible in use, simple in operation, easy in debugging, safe and reliable. Widely used in hydropower, water, petroleum, chemical, machinery, hydraulic and other industries, the pressure of the fluid medium for on-site measurement display and control.

universal suffrage		clarification

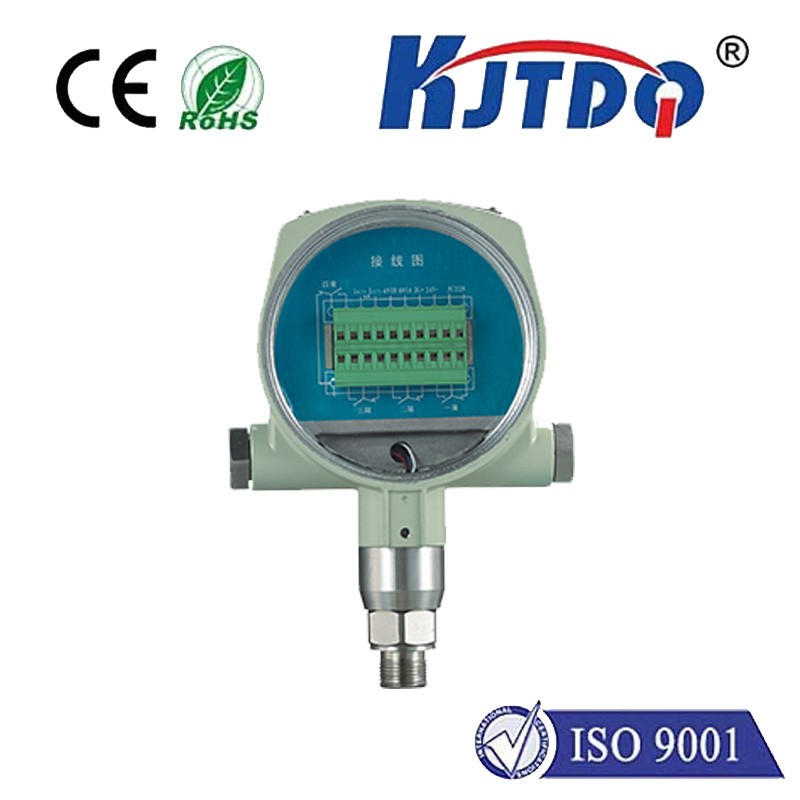

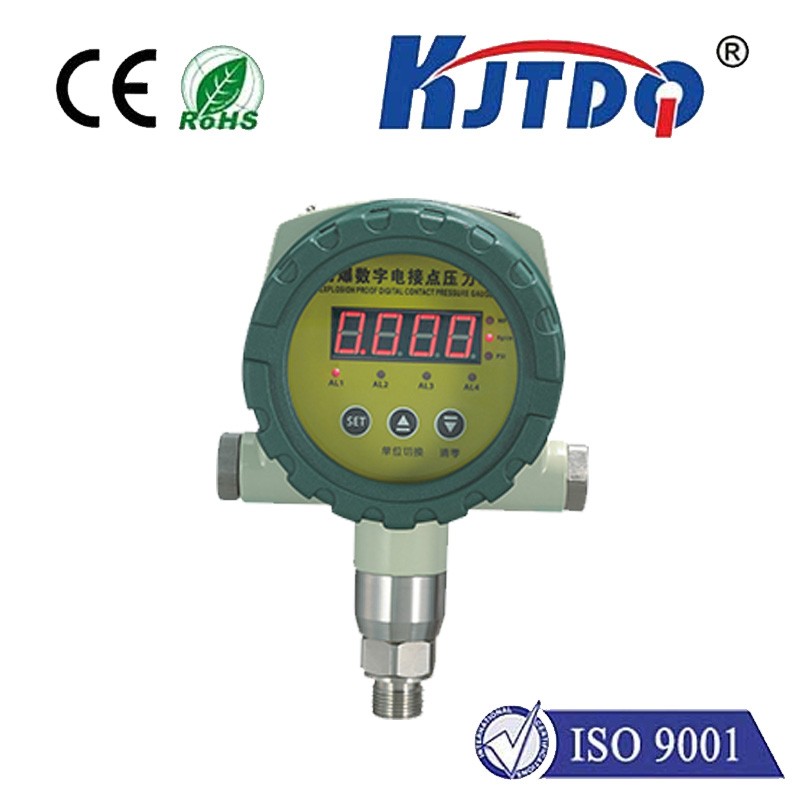

KJT-C208		Explosion-proof electric contact pressure gauge
output method	202	Single relay output
	204	Dual Relay Outputs
	206	Three relay outputs
	208	Four relay outputs
	2	normally open
	3	Normally Open + Normally Closed
transformer output	0	no output
	2	4-20mA output
Accuracy Class	1	1％
	2	0.5％
process connection	A	20*1.5
	B	G1/2
	D	Other orders are specified
Power supply method	W	DC24V battery powered
	A	AC220V power supply
Measurement range	-100kPa-60MPa	Customer Choice
