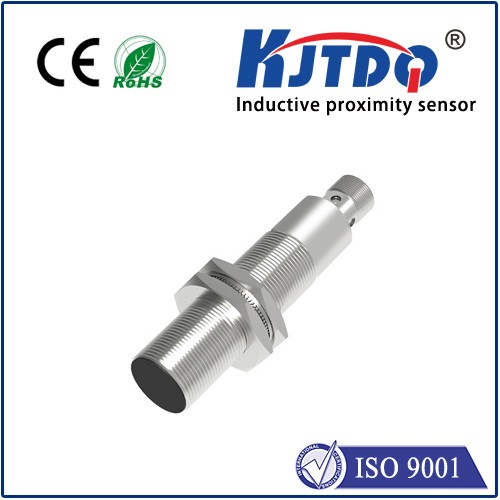

General specifications
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
NPN
|
|
Rated operating distance
|
8 mm
|
|
Installation
|
flush
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 6.48 mm
|
|
Reduction factor rAl
|
0.4
|
|
Reduction factor rCu
|
0.3
|
|
Reduction factor r304
|
0.7
|
|
Reduction factor rBrass
|
0.45
|
|
Output type
|
3-wire
|
|
Nominal ratings
|
|
Operating voltage
|
5 ... 60 V
|
|
Switching frequency
|
0 ... 1500 Hz
|
|
Hysteresis
|
typ. 5 %
|
|
Reverse polarity protection
|
reverse polarity protected
|
|
Short-circuit protection
|
pulsing
|
|
Inductive overvoltage protection
|
yes
|
|
Surge suppression
|
yes
|
|
Voltage drop
|
≤ 2 V
|
|
Rated insulation voltage
|
60 V
|
|
Operating current
|
0 ... 200 mA
|
|
Off-state current
|
0 ... 0.5 mA typ. 0.1 µA at 25 °C
|
|
No-load supply current
|
≤ 7 mA
|
|
Time delay before availability
|
≤ 220 ms
|
|
Switching state indicator
|
Multihole-LED, yellow
|
|
Functional safety related parameters
|
|
MTTFd
|
1085.5 a
|
|
Mission Time (TM)
|
20 a
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, General Purpose, Class 2 Power Source
|
|
CSA approval
|
cCSAus Listed, General Purpose, Class 2 Power Source
|
|
CCC approval
|
Certified by China Compulsory Certification (CCC)
|
|
E1 Type approval
|
10R-04
|
|
Ambient conditions
|
|
Ambient temperature
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Storage temperature
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Mechanical specifications
|
|
Connection type
|
Connector plug M12 x 1 , 3-pin
|
|
Housing material
|
brass, nickel-plated
|
|
Sensing face
|
PBT
|
|
Degree of protection
|
IP68 / IP69K
|
|
Mass
|
46 g
|
|
Dimensions
|
|
|
|
Length
|
65 mm
|
|
|
Diameter
|
18 mm
|
