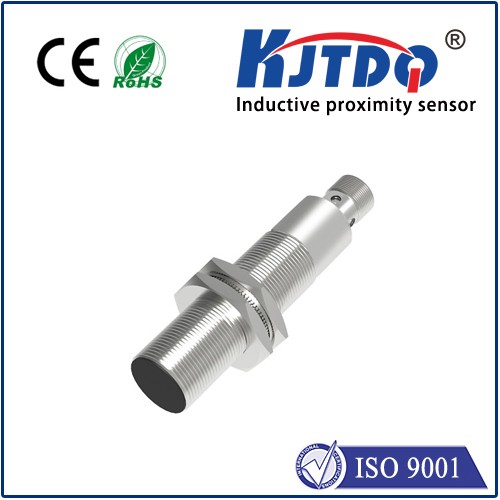

Inductive sensor NBB8-18GM50-E2-V1-M1

Inductive proximity sensor

Inductive sensor NBB8-18GM50-E2-V1-M1

  • 8 mm flush
  • Increased operating distance
  • Extended temperature range
    -40 ... +85 °C
  • With increased sealing, protection class
    IP68 / IP69K
  • E1-Type approval
  • Product Detail

Datasheet excerpt: Technical data of  NBB8-18GM50-E2-V1-M1

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 8 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.7
Reduction factor rBrass 0.45
Output type 3-wire
Nominal ratings
Operating voltage 7 ... 30 V
Switching frequency 0 ... 1600 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 4 µA at 25 °C
No-load supply current ≤ 10 mA
Time delay before availability ≤ 100 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1484 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
E1 Type approval 10R-04
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 3-pin
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP68 / IP69K
Mass 45 g
Dimensions
Length 65 mm
Diameter 18 mm
General information
Scope of delivery 2 self locking nuts in scope of delivery
