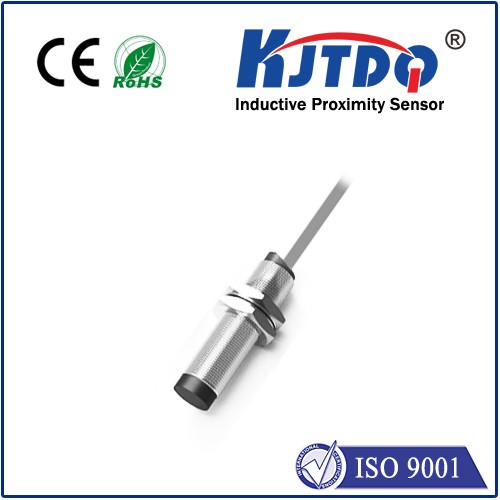

Inductive sensor NBN4-12GM40-Z0

Inductive proximity sensor

Inductive sensor NBN4-12GM40-Z0

  • 4 mm non-flush
  • 2-wire DC
  • Product Detail

Datasheet excerpt: Technical data of  NBN4-12GM40-Z0

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 4 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 3.24 mm
Actual operating distance 3.6 ... 4.4 mm typ.
Reduction factor rAl 0.37
Reduction factor rCu 0.36
Reduction factor r304 0.74
Output type 2-wire
Nominal ratings
Operating voltage 5 ... 60 V
Switching frequency 0 ... 700 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection pulsing
Voltage drop ≤ 5 V
Operating current 2 ... 100 mA
Lowest operating current 2 mA
Off-state current 0 ... 0.5 mA typ.
Switching state indicator all direction LED, yellow
Functional safety related parameters
MTTFd 2020 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable PVC , 2 m
Core cross section 0.14 mm2
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP67
Cable
Cable diameter 3 mm ± 0.2 mm
Bending radius > 10 x cable diameter
Dimensions
Length 40 mm
Diameter 12 mm
