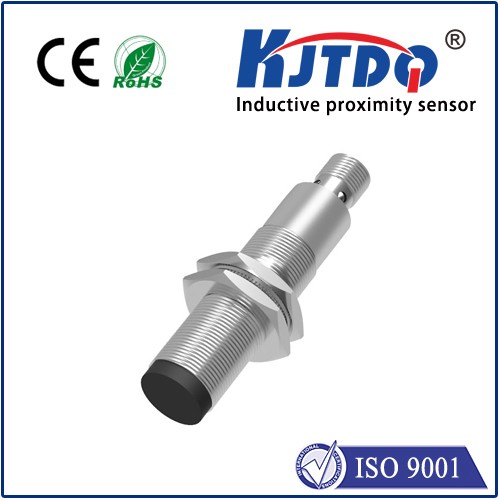

Inductive sensor NBN8-18GM60-WS-V12

Inductive proximity sensor

Inductive sensor NBN8-18GM60-WS-V12

  • 2-wire AC
  • Sensing range 8 mm
  • Product Detail

Datasheet excerpt: Technical data of  NBN8-18GM60-WS-V12

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 8 mm
Installation non-flush
Output polarity AC
Assured operating distance 0 ... 6.48 mm
Actual operating distance 7.2 ... 8.8 mm typ. 8 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.4
Reduction factor r304 0.7
Output type 2-wire
Nominal ratings
Operating voltage 20 ... 253 V
Switching frequency 0 ... 25 Hz
Hysteresis typ. 5 %
Reverse polarity protection yes
Short-circuit protection NO
Voltage drop ≤ 8 V
Momentary current
(20 ms, 0.1 Hz)
0 ... 1700 mA
Operating current 5 ... 200 mA
Off-state current 0 ... 1.7 mA typ.
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1103 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Standard conformity
Standards IEC / EN 60947-5-2:2004
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Connector plug 1/2"-20 UN , 3-pin
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP67
Dimensions
Length 60 mm
Diameter 18 mm
Note 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V
Safety fuse ≤ 0.8 A (quick-blow) according to IEC 60127-2 Sheet 1
Recommendation: after a short circuit, check that the device is functioning correctly.

Classifications



System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
