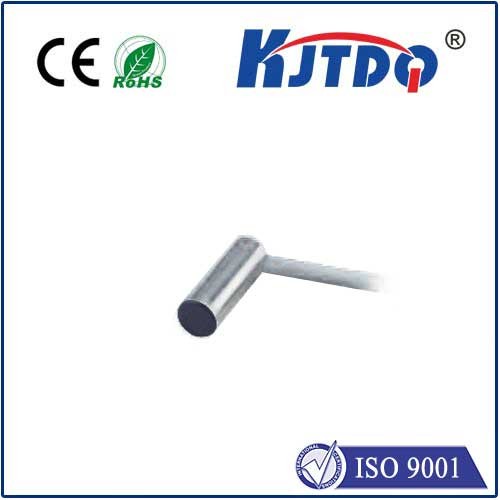

Inductive sensor equivalent to  NBB2-6,5S16-E2-Y273690

Ultra Small inductive proximity sensor

Inductive sensor equivalent to NBB2-6,5S16-E2-Y273690

  • Basic series
  • Increased operating distance
  • Product Detail

Datasheet excerpt: Technical data of  NBB2-6,5S16-E2-Y273690

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 2 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 1.62 mm
Reduction factor rAl 0.3
Reduction factor rCu 0.25
Reduction factor r304 0.7
Reduction factor rSt37 1
Reduction factor rBrass 0.4
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 5000 Hz
Hysteresis ≤ 10 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 200 mA
Off-state current ≤ 0.1 mA
No-load supply current ≤ 10 mA
Switching state indicator LED
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable PVC , 2 m
Core cross section 0.14 mm2
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PA 12
Degree of protection IP67
Dimensions
Length 16 mm
Diameter 6.5 mm
