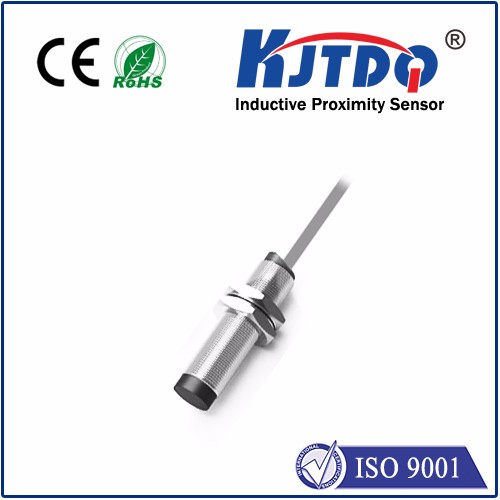

Kjtdq M12 Non Flushed Proximity Sensor Proximity Sensor PNP Nc 10-30VDC

Standard inductive proximity sensor

Kjtdq M12 Non Flushed Proximity Sensor Proximity Sensor PNP Nc 10-30VDC

KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability. It is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries. The overall dimension, cable and detection distance of the product can be customized.

The proximity switch produced by Nanjing KJT Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron and P+F.


Product model KJT-JN12-ZPB-LY

Installation mode non flushed

Detection distance 4/8/10mm

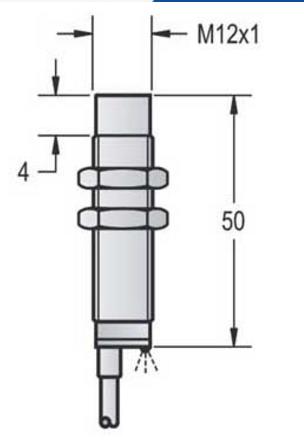

Outline specification M12*50

Output mode NPN/PNP NO/NC

supply voltage 10…30VDC

switching frequency 2KHz/2KHz/1KHz

Switch point offset ≤±10%

Hysteresis range 1…20%

Repetition error ≤3%

Load current ≤100mA

Residual voltage ≤2.5V

Consumption current ≤10mA

Protection circuit Surge, reverse polarity protection

Output indication Red LED

ambient temperature - 25…70ºC

ambient humidity 35-95%

Degree of protection IP67

Shell material Brass chrome plating

Wiring mode 2m pur cable
  • Product Detail
KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability. It is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries. The overall dimension, cable and detection distance of the product can be customized.

The proximity switch produced by Nanjing KJT Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron and P+F.


Product model KJT-JN12-ZPB-LY

Installation mode non flushed

Detection distance 4/8/10mm

Outline specification M12*50

Output mode NPN/PNP NO/NC

supply voltage 10…30VDC

switching frequency 2KHz/2KHz/1KHz

Switch point offset ≤±10%

Hysteresis range 1…20%

Repetition error ≤3%

Load current ≤100mA

Residual voltage ≤2.5V

Consumption current ≤10mA

Protection circuit Surge, reverse polarity protection

Output indication Red LED

ambient temperature - 25…70ºC

ambient humidity 35-95%

Degree of protection IP67

Shell material Brass chrome plating

Wiring mode 2m pur cable
