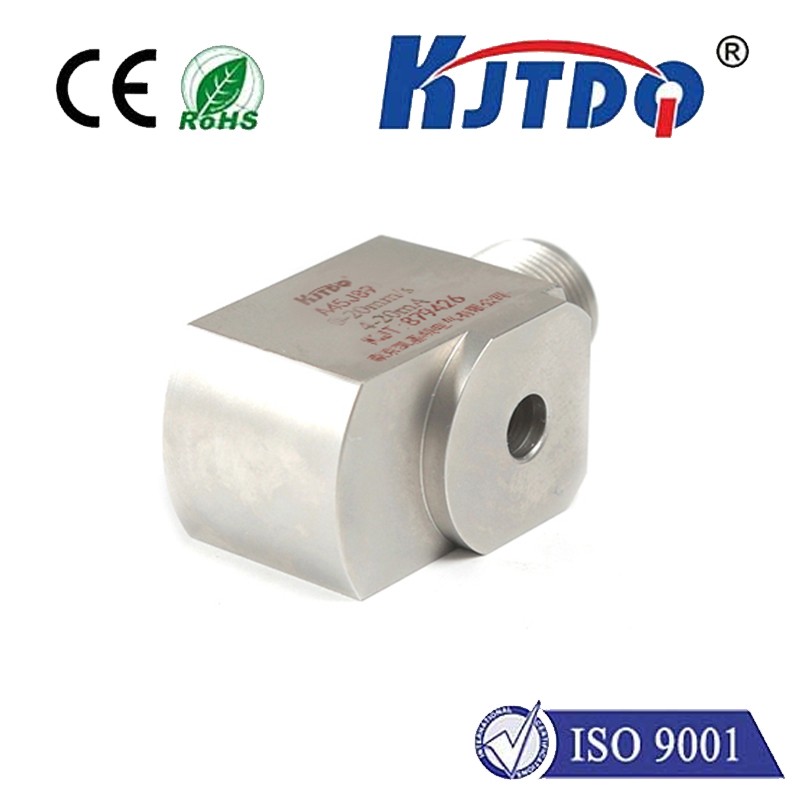

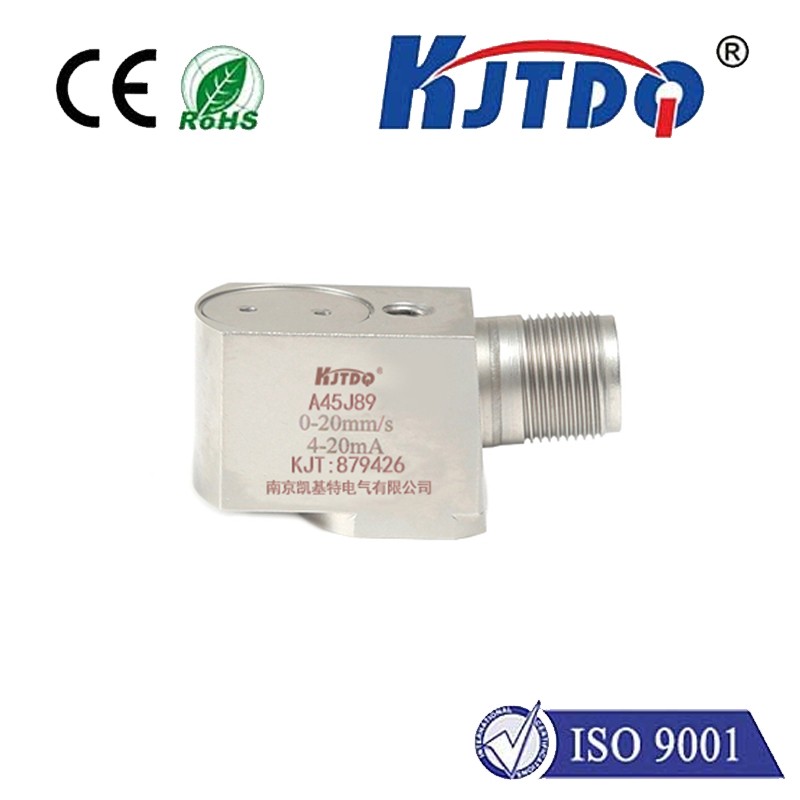

The piezoelectric integrated vibration speed transmitter is a professional high-precision design based on the piezoelectric acceleration sensor, with a precision integrating circuit embedded inside. Suitable for absolute (relative to free surface) vibration of bearing boxes, shells or structures, suitable for various harsh environments in industrial sites.

★Embedded precision integrating circuit, true RMS 4-20mA output

★Used for absolute vibration speed measurement of equipment failure

★Isolated floating, industrial site monitoring, strong anti-interference performance

Dynamic characteristics
Measuring range (peak value)	0~20mm/sec
output	4~20mA(true valid value)
Amplitude nonlinearity	<2%
Frequency response	5~1,000Hz(±1dB)
Lateral sensitivity ratio	≥5%
Electrical properties
Supply voltage	15VDC~36VDC
Install ground insulation	≥10^8Ω
Environmental characteristics
Operating temperature	-40°C~+120°C
Impact limit (peak value)	2000 g
temperature response	See attached picture for temperature curve
physical properties
structure type	cut
Housing material	304 Stainless Steel
output method	Side 5/8-24 two-core socket
Installation method	M6
Protection level	IP65
weight	~125G
Appendix
mounting bolts	M6 inner hexagon
connecting cables	MIL two-core connecting cable (3 meters)
