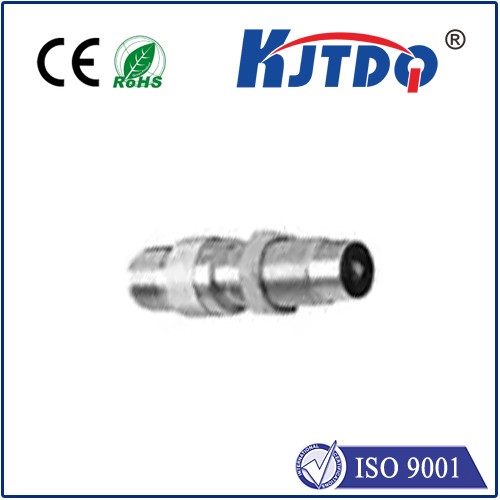

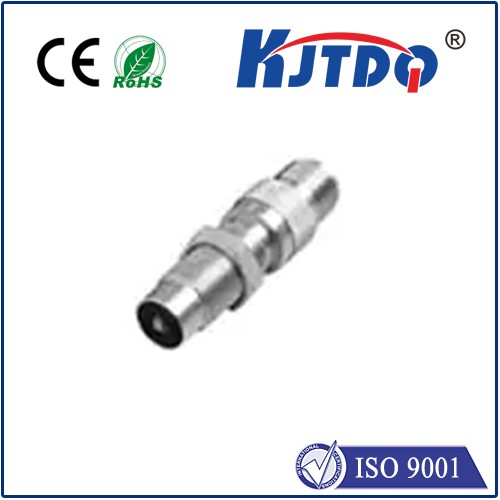

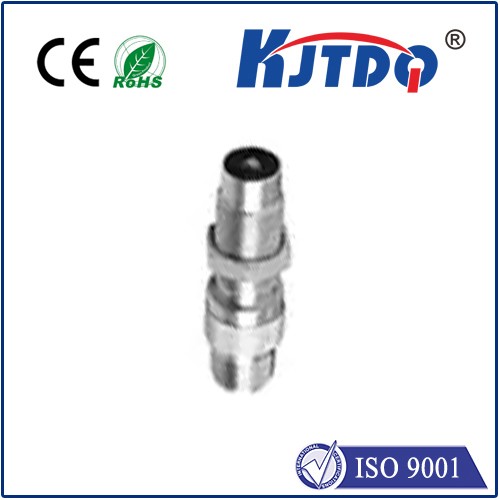

DESCRIPTION
High Temperature VRS sensors are designed for use in applications where the sensor is exposed to temperatures up to 260 ∫C [450 ∫F]. Sealed Front-End versions are available for applications where the sensor is exposed to fluids, lubricants or adverse environmental conditions.Passive VRS (Variable Reluctance Speed) Magnetic Speed sensors are simple, rugged devices that do not require an external voltage source for operation. A permanent magnet in the sensor establishes a fixed magnetic field. The approach and passing of a ferrous metal target near the sensor’s pole piece (sensing area) changes the flux of the magnetic field, dynamically changing its strength. This change in magnetic field strength induces a current into a coil winding which is attached to the output terminals.The output signal of a VRS sensor is an ac voltage that varies in amplitude and wave frequency as the speed of the monitored device changes, and is usually expressed in peak to peak voltage (Vp-p). One complete waveform (cycle) occurs as each target passes the sensor’s pole piece. If a standard gear were used as a target, this output signal would resemble a sine wave if viewed on an oscilloscope.

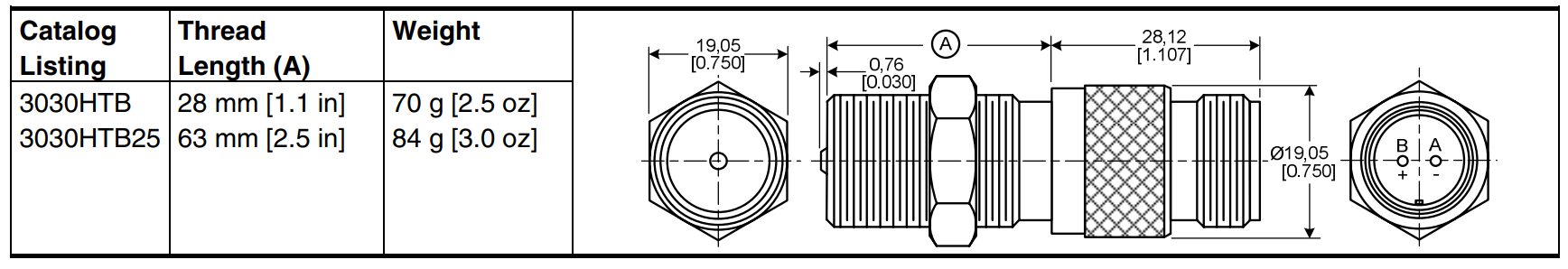

FEATURES

• Output voltages: 4.7 Vp-p to 125 Vp-P

APPLICATION

•Engine RPM (revolutions per minute) measurement on
aircraft, automobiles, boats, buses, trucks and rail
vehicles
• Motor RPM measurement on drills, grinders, lathes and
automatic screw machines
• Motor RPM measurement on precision camera, tape
recording and motion picture equipment
• Process speed measurement on food, textile, paper,
woodworking, printing, tobacco and pharmaceutical
industry machinery
• Motor speed measurement of electrical generating
equipment
• Speed measurement of pumps, blowers, mixers, exhaust
and ventilating fans
• Flow measurement on turbine meters
• Wheel-slip measurement on autos and locomotives
• Gear speed measurement
