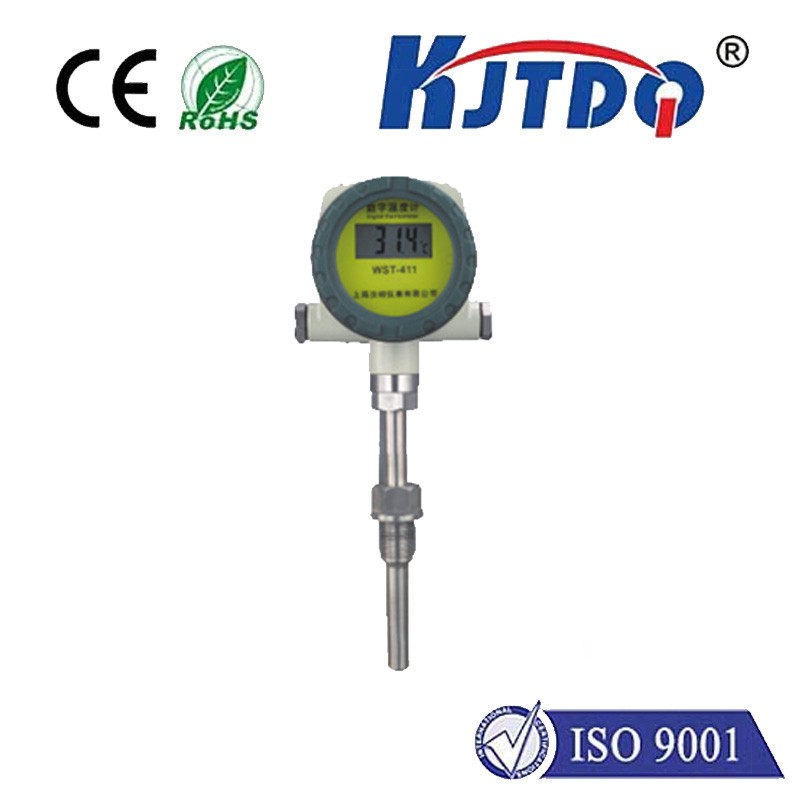

KJT- CXTU-822 Explosion-proof Digital Thermometer

Products

KJT- CXTU-822 Explosion-proof Digital Thermometer

  • brand name:Explosion-proof digital thermometer
  • model number:KJT- CXTU-822
  • Temperature range:The default temperature range is -50-200℃, please contact customer service for quotation if you need other temperature range.
  • Product Diameter:140mm
  • Dial Diameter:100mm
  • Installation:Default thread is movable thread M27*2 (thread O.D. 27mm. Pitch 2mm), G1/2, M20X1.5.
  • power supply:Default is 2 x 5 batteries
  • Display Color:Black digital display
  • dial panel:Switched as standard
  • material (that sth is made of):Shell, cast aluminum, temperature measurement part of the whole stainless steel 304 materials
  • protection class:IP66
  • Explosion-proof symbol:ExdII CT6 Gb
  • Product Detail

1

Explosion-proof digital thermometer using cast aluminum shape, temperature measurement part of the full stainless steel 304 material, strong, beautiful and durable, using imported chip assembly, high stability, built-in battery, micro-power consumption, low temperature drift, integrated circuits and LCD, without external power supply, applicability of the new type of strong on-site temperature display instrument, is the traditional on-site pointer bimetallic thermometer, the present would like to replace the product, is widely used in electric power, steel and all kinds of mechanical equipment supporting.


universal suffrage clarification
KJT- CXTU-822
digital thermometer
clamshell Cast Aluminum Housing
Accuracy Class 1 1%
2 0.5%
process connection A 20*2
B G3/4
C Other specify when ordering
Power supply method N battery powered
Temperature range -50+200 ℃ Customer Choice


4


11
