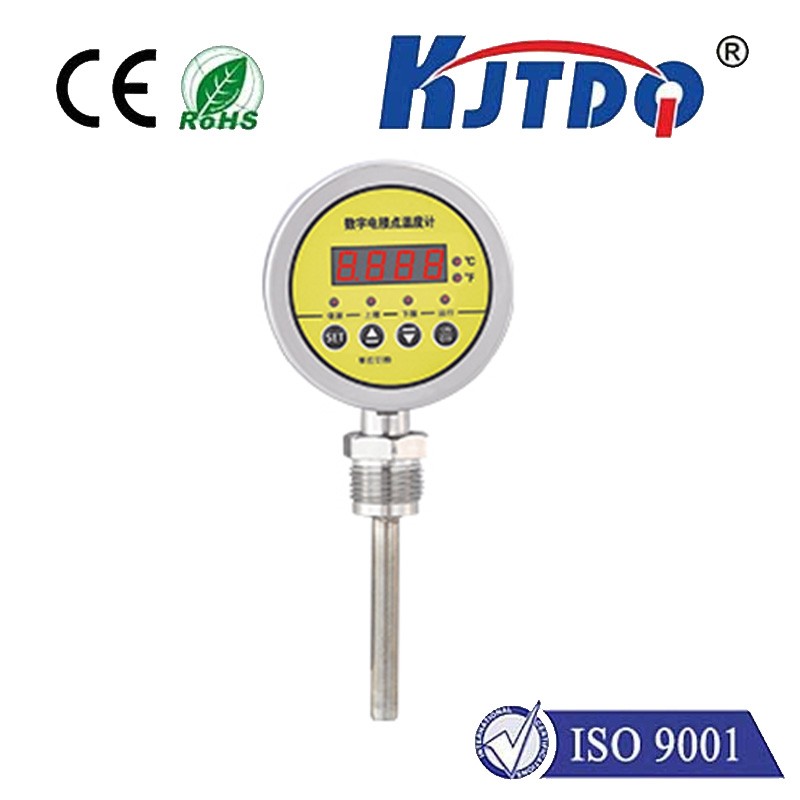

KJT-XT-416 digital electrical contact thermometer is made of all stainless steel 304 material, which is strong, beautiful and durable. It is a high-precision intelligent temperature measurement instrument that integrates temperature measurement, high-brightness LED digital tube display and control. It has the characteristics of simple operation, good seismic performance, good control accuracy, can measure gas, liquid, oil and other media that are non-corrosive to stainless steel, and has a long service life. It has switching value and RS485 communication output, and can directly replace mechanical bimetallic electrical contacts. thermometer.

Type		Product Description
KJT-XT-416		Digital Thermometer
output method	416A	Single relay output
	416B	Dual relay output
	2	NO
	3	NO+NC
Communication output	0	No communication output
	16	RS485 communication output
Accuracy level	1	1％
	2	0.5％
process connection	A	27*2
	B	G1/2
	C	20*1.5
	D
Power supply	A	AC220V
	B	AC380V
	W	DC24V
Temperature measurement range	-50+200 ℃	Customer choice
