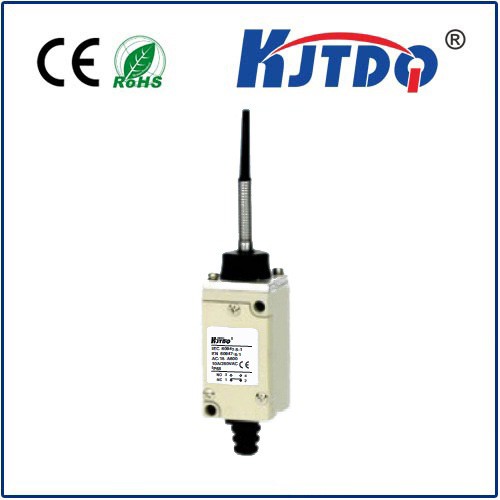

★Double-circuit type travel switch, widely used

★Sturdy structure, composed of zinc alloy and reinforced plastic

★Small size, waterproof and oil-proof

★The built-in micro switch has a double reed structure design and has a longer mechanical life.

★With larger OT actions

★Conduit design for easy wiring

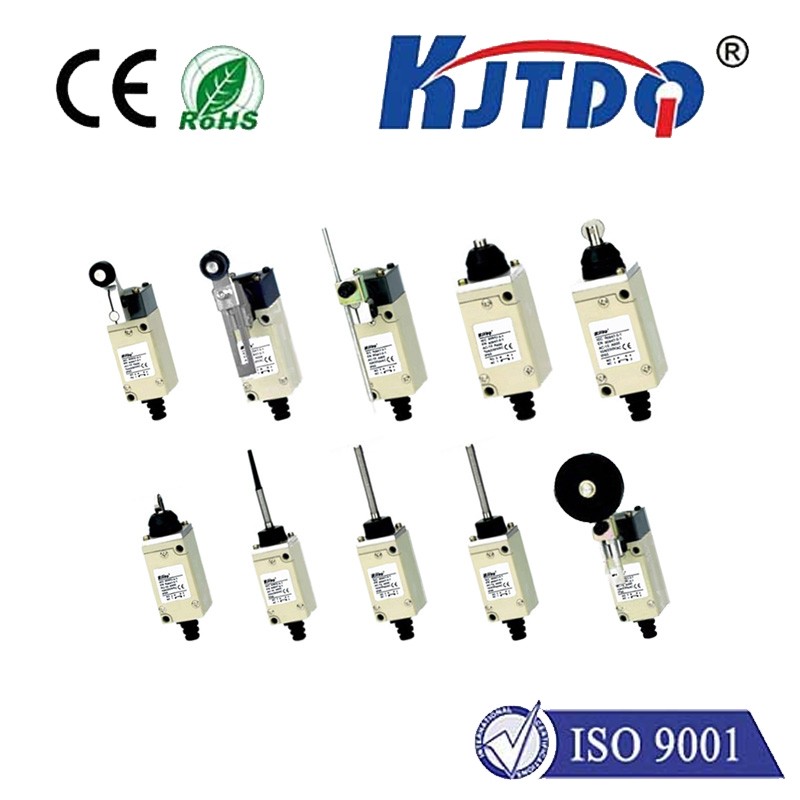

★Many types of actuators, easy to use

Model	KJT	3205	3208	3209	3212	3213	3214	3267	3268	3270	3289
Operating force	OF（max）	750G-CM	750G-CM	750G-CM	750G-CM	900G-CM	900G-CM	150G	150G	150G	550G-CM
Resilience	RF（Min）	100G-CM	100G-CM	100G-CM	200G	200G	200G	30G	30G	30G	100G-CM
Pre-trip	PT（Max）	20	20	20	1.8mm	1.8mm	1.8mm	30mm	30mm	30mm	20
Trigger position	Target（±10%）	22.5°	22.5°	22.5°	2.0mm	2.0mm	2.0mm	22.5°	22.5°	22.5°	22.5°
Stroke movement resolution	MD（Max）	10	10	10	1.2mm	1.2mm	1.2mm	14	14	14	14
Aftertouch	OT（Min）	75	75	75	4.0mm	4.0mm	4.0mm	20mm	20mm	20mm	75
Cumulative total trip	TT（min）	95	95	95	5.8mm	5.8mm	5.8mm	50mm	50mm	50mm	95

Double disconnect mechanical function	INO+INC force disconnect buckle action forced disconnect fast movement
Rated voltage/current Rated voltage/current	10(4)A, 125, 250VAC/6(2)A, 380VAC inductive load, residual φ=0.4
contact resistance contact resistance	Initial <10mΩ, tested <30mΩ
Insulation resistance	500mΩ minimum at 100VDC
Dielectric strength	AC 200VAC/minute between bare metal/terminal, ground and counter pole
Electrical life	500,000 at 10A 250VAC resistive
Mechanical life	20,000,000
operating speed	120 /Minute
Waterproof Or dustproof ability	IP66(Pressure water column level)
rising temperature	At rated voltage/current, up to 30°C over the entire ambient temperature range
standards	CENELEC EN 50041，EN 50047，IEC 337-1，VDE 0660
operating temperature	-25°C~+80°C
storage temperature	-25°C~+80°C
humidity	Maximum 95° relative humidity (no dew)
Impact coefficientImpact resistance	Free position 10G Overtravel position 30G
Vibration frequency	MAX 55Hz
Terminal screw torque	6-8kg method-cm
Other screw torque	Cover 12-14 kg ft cm/head 8-9 kg ft cm/installed 50-60 kg ft/cm
Copper wire size	φ2 max
Cable diameter size	φ9 Maximum value (if using cable IP 66 φ8-9)
