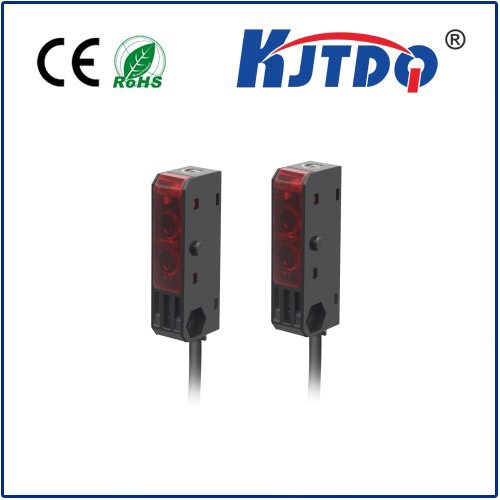

KJT-FW Miniature Photoelectric Sensor

Photoelectric sensor

KJT-FW Miniature Photoelectric Sensor

  • Product Model:KJT-FW
  • Detection distance:1.5m
  • Standard test object size:Opaque objects: 6mm min
  • Protection class:IEC-IP40
  • Accessories:Mounting bracket, screws, nuts
  • Product Detail

Photoelectric switches achieve control by converting changes in light intensity into changes in electrical signals. Kaijit photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, cylindrical, square, slot type, relay output, etc. Kaijit's standard photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, long-distance type, intelligent type, and relay output type. They have strong anti-interference and stable performance to fully meet your needs.

The proximity switches produced by Nanjing Kejit Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron, and Pepperl+Fuchs.


主要技术参数


Technical parameter

Model

FS30

FS50 QS18

Diffuse Reflection

0.3m

0.3/0.5/1.5m 0.1-0.7m

Retro Reflection

1m

3/5m 2m

Sensing surface material

5m

5/10/30m 5m
Operating voltage

10-36VDC

Light Source Infrared Led(880nm)

Output

NPN/PNP/NO/NC

Consumption current

≤25mA

Response time

≤8.2ms
Return difference 5…20%
Voltage drop ≤2.5V
Repeat accuracy

≤3%

Output instructions Yellow LED
Protection circuit Surge, reverse polarity, short circuit protection
Operating temperature -25°C- 55°C
Environment humidity 35 to 95% RH
Shell material PC/ABS
Wiring 2M PVC cable
Protection level IP67


e5b387f50cd937bdf9978f7480ded313_

Fs30chicuntu

48d15c9616eff25f3efb1c87b0ecbaca_

jiexiantu

场景图

1
