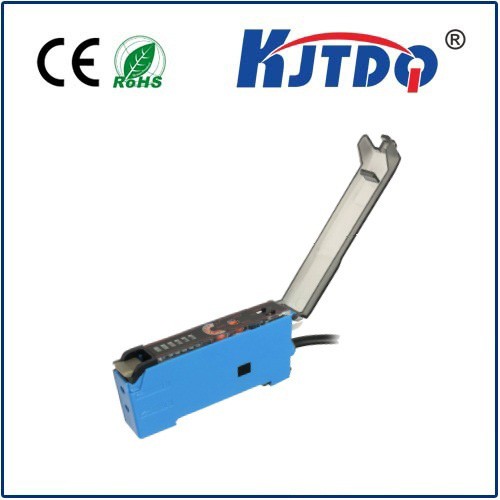

KJT-A3R Manually Adjustable Fiber Amplifier

Photoelectric sensor

KJT-A3R Manually Adjustable Fiber Amplifier

  • Product Model:A3R-N A3R-P
  • Light source:Red, 4-Element Light Emitting Diode
  • Respond time:Action, reset: 200µs each
  • Power supply voltage:12 to 24 VDC ±10 %, ripple (P-P) 10 % or less
  • Product Detail

◆ High-performance fibre optic sensors suitable for detecting small objects and small chromatic aberration, adapting to the installation in

narrow space and bad environment.


◆ Fibre optic detector head is small, suitable for installation in narrow space, and the fibre optic head can work reliably in bad environments

such as large electromagnetic interference, large temperature difference, large humidity, and the need for explosion-proof occasions.


◆Simple operation and adjustable sensitivity.

主要技术参数

Product model

A3R-N

NPN output

A3R-P

PNP output

Light source (luminescence wavelength) Red 4-element LED
power supply voltage DC12~24V±10% fluctuation (p-p) less than 10%
Power consumption/power consumption 600mW or less
control output

Open collector output type (NPN or PNP)

Load voltage 30V or less, load current 50mA or less (residual voltage: 1V or less) ON when exposed to light/ON when protected from light switching type

Response time

Action and reset: 200 µs or less each
Sensitivity adjustment 8 Turn the full-turn knob (with indicator)
Protection circuit Power reverse connection protection, output short circuit protection
Timer function

No timer, with OFF delay timer

Switch type (timer time: fixed at 40ms)

Use ambient illumination Surface illumination: Incandescent lamp: 10,000x or less, Sunlight: 20,000lx or less
Number of connected units Up to 16 units (ambient temperature specifications vary depending on the number of connected units)
Ambient temperature

when connecting 1~3 units: -25~+55°C, When connecting 4~11 units: -25~+50°C, When connecting 12~16 units: -25~+45°C

Storage: -30~+70℃ (no icing or condensation)

Withstand voltage  AC1,000V 50/60 Hz 1min
Vibration (durability) 10~55Hz double amplitude 1.5mm in each direction of X, Y and Z for 2h
Impact (durability) 500m/s² 3 times in each direction of X, Y and Z

Protective structure

IEC standard IP50 (when protective cover is installed)
Connection method Wire lead type (standard wire length 2m)
Quality (after packaging) About 100g

Sell material

PBT

Appendix

User's Guide


尺寸图

4

接线图

2

场景图

5
