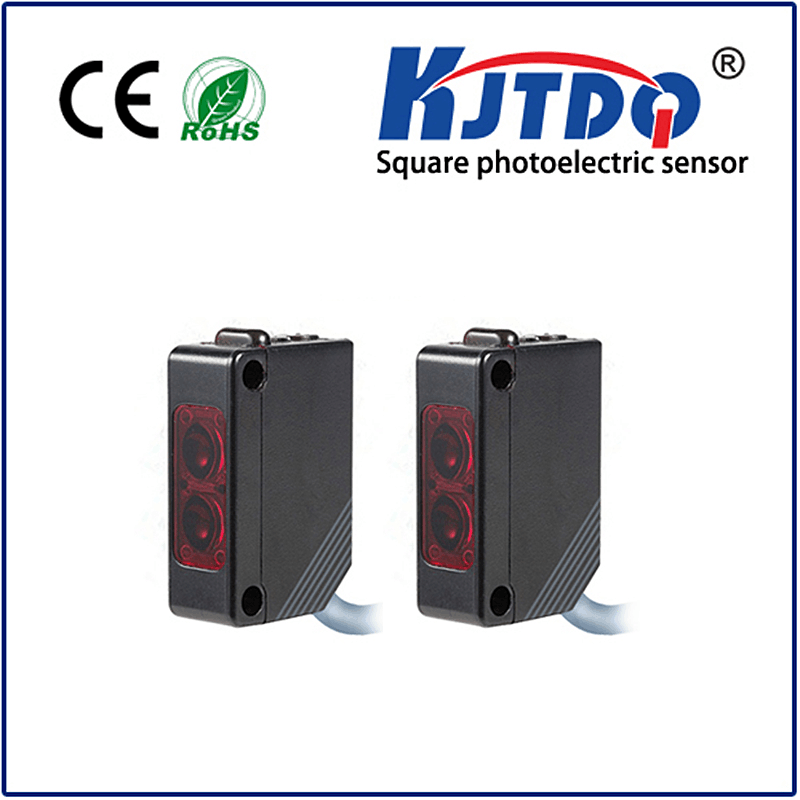

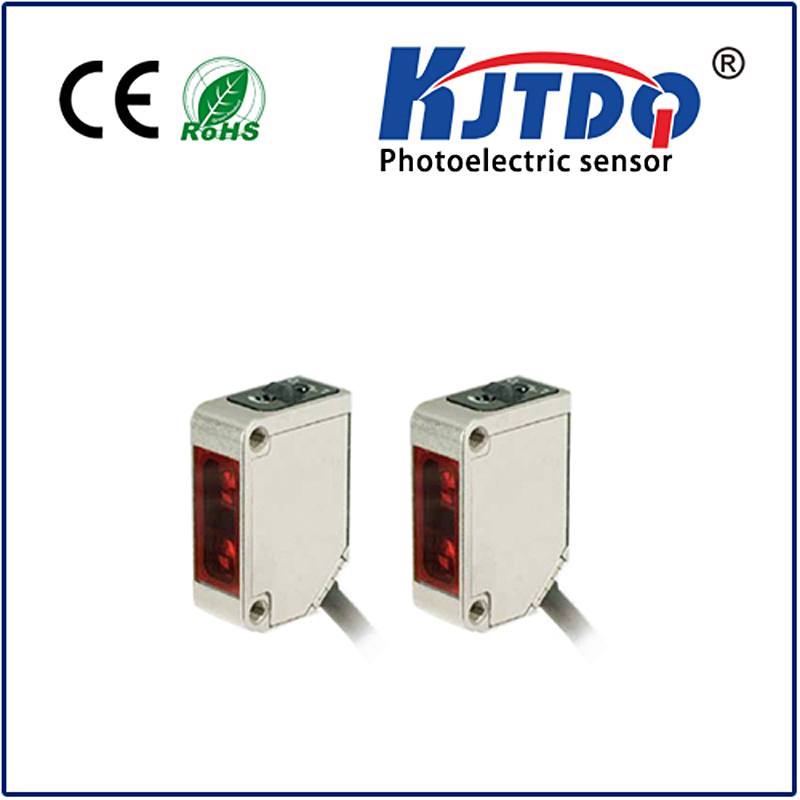

Thru-beam sensor (pair) equivalent to OBE12M-R100-S2EP-IO-0,3M-V1

Square type Photoelectric sensor

Thru-beam sensor (pair) equivalent to OBE12M-R100-S2EP-IO-0,3M-V1

  • Miniature design with versatile mounting options
  • IO-Link interface for service and process data
  • Various frequencies for avoiding mutual interference (cross-talk immunity)
  • Extended temperature range
    -40 °C ... 60 °C
  • High degree of protection IP69K
  • Product Detail

Datasheet excerpt: Technical data of  OBE12M-R100-S2EP-IO-0,3M-V1

System components
Emitter OBE12M-R100-S-IO-0,3M-V1
Receiver OBE12M-R100-2EP-IO-0,3M-V1
General specifications
Effective detection range 0 ... 12 m
Threshold detection range 15 m
Light source LED
Light type modulated visible red light
LED risk group labelling exempt group
Diameter of the light spot approx. 65 mm at a distance of 1 m
Opening angle 3.7 °
Ambient light limit EN 60947-5-2 : 30000 Lux
Functional safety related parameters
MTTFd 462 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Operation indicator LED green:
constantly on - power on
flashing (4Hz) - short circuit
flashing with short break (1 Hz) - IO-Link mode
Function indicator Yellow LED:
Permanently lit - light path clear
Permanently off - object detected
Flashing (4 Hz) - insufficient operating reserve
Control elements Receiver: light/dark switch
Control elements Receiver: sensitivity adjustment
Parameterization indicator IO link communication: green LED goes out briefly (1 Hz)
Electrical specifications
Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current Emitter: ≤ 14 mA
Receiver: ≤ 13 mA at 24 V supply voltage
Protection class III
Interface
Interface type IO-Link ( via C/Q = pin 4 )
IO-Link revision 1.1
Device ID Emitter: 0x110401 (1115137)
Receiver: 0x110301 (1114881)
Transfer rate COM2 (38.4 kBit/s)
Min. cycle time 2.3 ms
Process data width Emitter:
Process data output: 2 Bit
Receiver:
Process data input: 2 Bit
Process data output: 2 Bit
SIO mode support yes
Compatible master port type A
Input
Test input emitter deactivation at +UB
Output
Switching type The switching type of the sensor is adjustable. The default setting is:
C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link
/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
Signal output 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Usage category DC-12 and DC-13
Voltage drop ≤ 1.5 V DC
Switching frequency 1000 Hz
Response time 0.5 ms
Conformity
Communication interface IEC 61131-9
Product standard EN 60947-5-2
Approvals and certificates
UL approval E87056 , cULus Listed , class 2 power supply , type rating 1
Ambient conditions
Ambient temperature -40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation
-25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67 / IP69 / IP69K
Connection 300 mm fixed cable with M12 x 1, 4-pin connector
Material
Housing PC (Polycarbonate)
Optical face PMMA
Mass Emitter: approx. 10 g receiver: approx. 10 g
Dimensions
Height 37.1 mm
Width 11 mm
Depth 21.5 mm
Cable length 0.3 m

Classifications





System Classcode
ECLASS 13.0 27270901
ECLASS 12.0 27270901
ECLASS 11.0 27270901
ECLASS 10.0.1 27270901
ECLASS 9.0 27270901
ECLASS 8.0 27270901
ECLASS 5.1 27270901
ETIM 9.0 EC002716
ETIM 8.0 EC002716
ETIM 7.0 EC002716
ETIM 6.0 EC002716
ETIM 5.0 EC002716
UNSPSC 12.1 39121528
