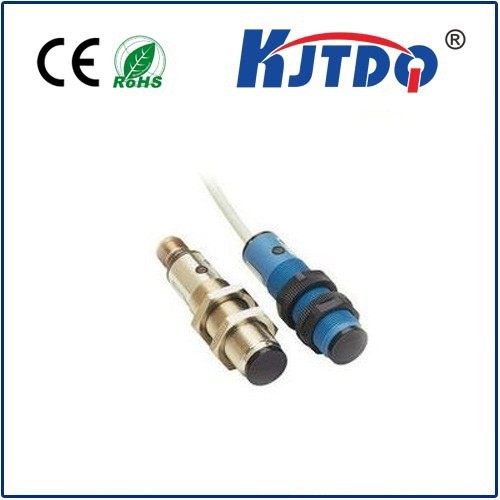

Kaijit photoelectric speed sensor is a multi-functional photoelectric speed sensor product independently developed and produced. It integrates photoelectric conversion circuit, amplification circuit, logic processing circuit and drive output circuit. Compared with similar foreign products, it has the advantages of more functions and low price. Compared with similar domestic products, it has the characteristics of fast response, high precision and stable quality. Suitable for robots, automated production lines, lathes, manipulators and robotic arm components, food processing equipment, printing equipment and other industrial machinery and equipment.

Technical parameter
Model	M18*61.5
Diffuse Reflection	30cm	1m	2m
Retro Reflection	50cm	1.5m	5m
through beam	70cm	2m	10m
Operating voltage	12-24VDC/90-250VAC
Light Source	Infrared Led(880nm)
Output	NPN PNP AC (second line)
Consumption current	≤25mA
Response time	≤1ms
Return difference	5…20%
Voltage drop	≤2.5V
Repeat accuracy	≤5%
Output instructions	Yellow LED
Protection circuit	Surge, reverse polarity, short circuit protection
Operating temperature	-15°C- 55°C
Environment humidity	35 to 95% RH
Shell material	PC/ABS
Wiring	2M PVC cable
Protection level	IP67
