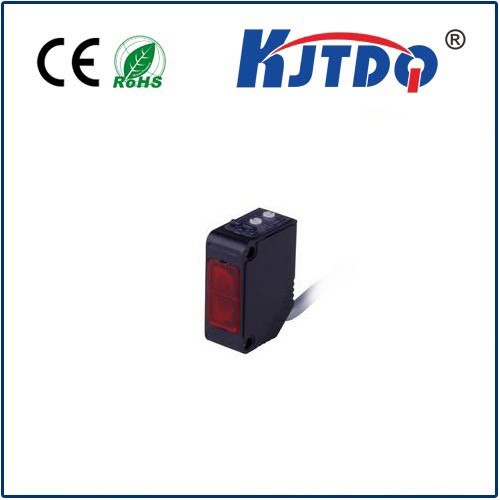

Kaijit photoelectric speed sensor is a multi-functional photoelectric speed sensor product independently developed and produced. It integrates photoelectric conversion circuit, amplification circuit, logic processing circuit and drive output circuit. Compared with similar foreign products, it has the advantages of more functions and low price. Compared with similar domestic products, it has the characteristics of fast response, high precision and stable quality. Suitable for robots, automated production lines, lathes, manipulators and robotic arm components, food processing equipment, printing equipment and other industrial machinery and equipment.

Technical parameter
Model	32*21*12.1
Diffuse Reflection	30cm	1m	70cm
Retro Reflection	50cm	1.5m	2m
through beam	70cm	2m	5m
Operating voltage	12-24VDC
Light Source	Infrared Led(880nm)
Output	PNP/NO/NC
Consumption current	≤25mA
Response time	≤8.2ms
Return difference	5…20%
Voltage drop	≤2.5V
Repeat accuracy	≤3%
Output instructions	Yellow LED
Protection circuit	Surge, reverse polarity, short circuit protection
Operating temperature	-15°C- 55°C
Environment humidity	35 to 95% RH
Shell material	PC/ABS
Wiring	2M PVC cable
Protection level	IP65
