KJT-FS3-40NT Label Sensor

Photoelectric sensor

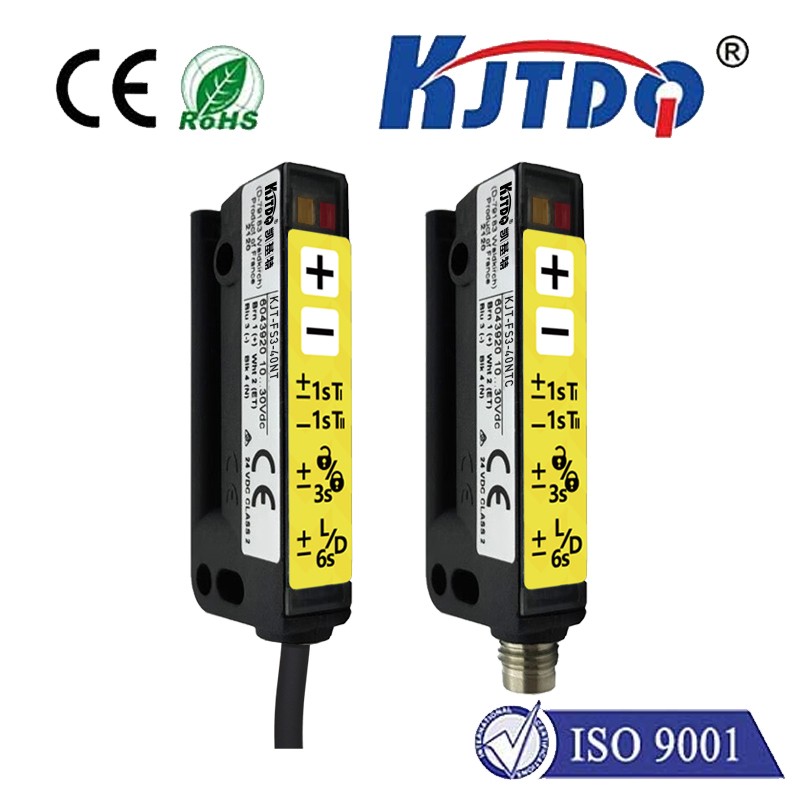

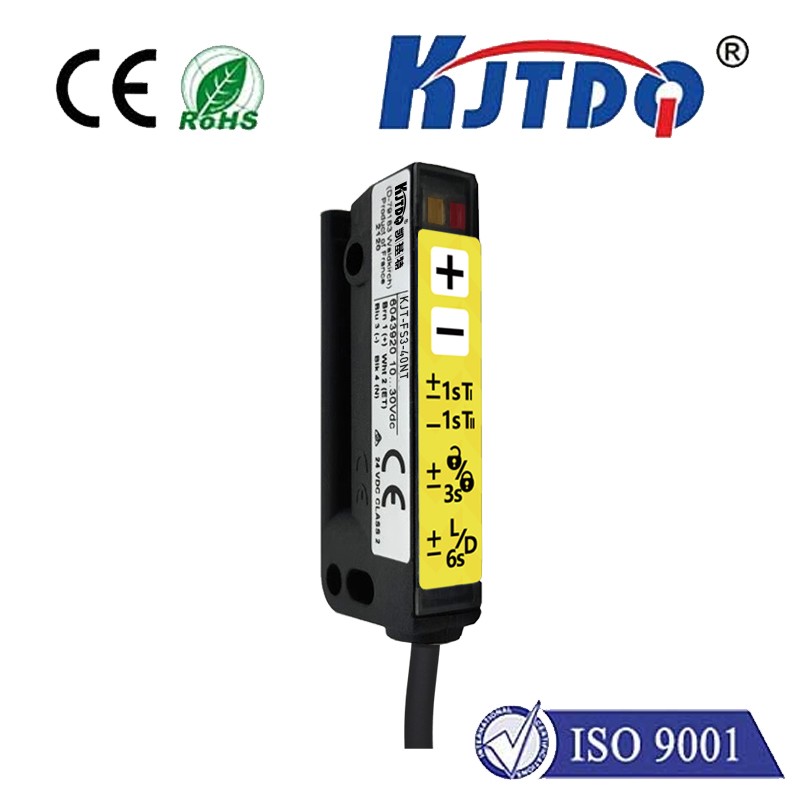

KJT-FS3-40NT Label Sensor

  • Switching output:PNP/NPN
  • Switch type:Light/dark switching
  • Fork depth:Slot shape
  • Light source:LED infrared
  • Response time:50MS
  • Connection Type:Plug, M8, 4-pin/conductor
  • Product Detail

KJT label sensor adopts an optimized thin shell and deep groove design; fast response time: 50ms; dynamic learning through the control panel and fine-tuning with +/- buttons; light/dark function; NPN&PNP integrated output Function; metal shell, protection grade IP65; output can be switched during self-learning, connector type or cable type with multiple connection methods.

● Adopt optimized thin shell and deep groove design

● Fast response time: 50ms

● Dynamic learning via control panel, fine-tuning with +/- keys

●Light/dark function

● NPN&PNP integrated output function

● Metal shell, protection grade IP65

● Connector type or cable type that can switch output and multiple connection methods during self-learning

1


Technical parameter

working principle

Optical principles

Dimensions (width x height x depth)

10MM x 25MM x 64.3MM

Groove width

3MM

Housing shape (beam exit)

42MM

Type

Label Gap Sensor

tag identification

yes

Minimum detectable object (MDO)

Spacing between labels/label size: 2MM (depends on the thickness of the label

light source

LED infrared

switch function

Light/dark switch is adjusted by button

set up

plus/minus button

Teaching function program

2 teaching contacts teaching function program (dynamic)

Switching output

NPN/PNP

On-off level

10 KHZ (when the light-dark contrast ratio is 1:1)

Response time

50MS (signal transmission time (when the battery is loaded)

Switching output (voltage)

PNP: high level = UV-s2V/low level = about 0V

Switch type

Light/dark switching

Connection Type

Plug, M8, 4-pin/conductor

.0 (4)

e5b387f50cd937bdf9978f7480ded313_

标签传感器尺寸(有线)

48d15c9616eff25f3efb1c87b0ecbaca_

标签传感器接线图


c01ea261d3ab5687c17f83cb98f20828_

场景图
