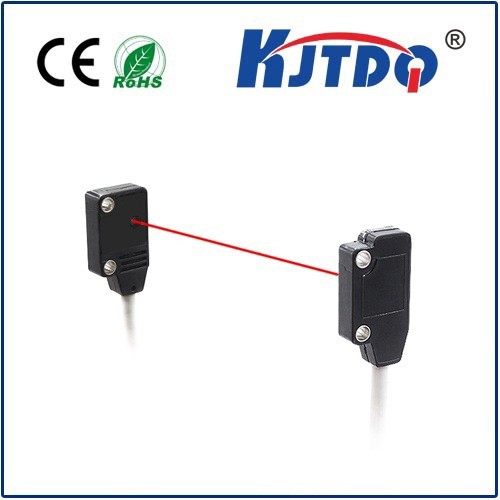

KJT-FWK-TR Miniature Photoelectric Sensor

Photoelectric sensor

KJT-FWK-TR Miniature Photoelectric Sensor

  • Product Model:KJT-FWK-TR
  • Detection distance:1m-2m
  • Supply Voltage:12~24V DC pulsation (P-P) ±10% max
  • Consumption Current:Light Receiver:20mA, Light Thrower:10mA
  • Protection Crcuit:Power and control output reverse connection, short circuit protection
  • Response time:1.0ms max
  • Product Detail

KJT photoelectric switch is through the change of light intensity into an electrical signal to achieve control.KJT photoelectric switch product range is complete, diffuse reflection type, mirror reflection type, counter-reflective type, cylindrical, square, groove type, relay output, etc. KJT standard photoelectric switch product range is complete, diffuse reflection type, mirror reflection type, counter-reflective type, long-distance type, intelligent type, relay output type, anti-interference, stable performance, comprehensive your needs. Stable, fully meet your needs.


主要技术参数


Product type

KJT-FQTR
Detection distance 150mm/300mm
Minimum Detected Objects Opaque Objects:1 mm
Shell material denatured polyaromatic resin (DPR)
Supply Voltage 12~24V DC pulsation (P-P) ±10% max
Consumption Current Light Receiver:20mA, Light Thrower:10mA
 Response time 0.5ms max
Light source Infrared light (680nm)
Load supply voltage 30V DC max.
Load supply current 50mA max.
Insulation resistance 200mΩ min. (DC500V)
Withstand voltage AC1,000V   50/60Hz min
Vibrations 10-500Hz Bi-amplitude 3 mmX, Y, Z 2h in each direction
Impact 500m/s²X、Y、Z 3 times in each direction.
Short circuit protection Yes
Operating temperature -25°C- 55°C
 Environmental humidity 35 to 85% RH
Suitable for intensity light ≤5.000Lux max.
Protection level IP67
Accessories M2*8 screws, spring washers, flat washers


尺寸图

接线图

场景图

1
