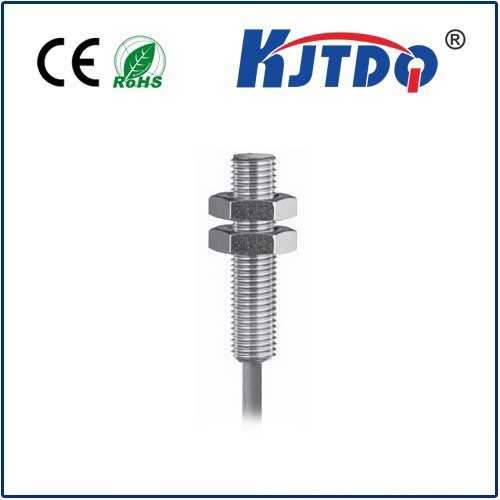

M12 Photoelectric Sensor (Diffuse Reflective)

Photoelectric sensor

M12 Photoelectric Sensor (Diffuse Reflective)

  • Product Model:KJT-FJ12
  • Detection distance:0.1m
  • Distance tolerance:<10%(Sr)
  • Shell material:Copper nickel plated or plastic
  • Operating voltage:10-30VDC
  • Response time:<5ms
  • Product Detail

Photoelectric switches are controlled by converting changes in light intensity into electrical signals.KJT photoelectric switches are available in a wide range of products, such as diffuse reflective, specular reflective, counter-reflective, cylindrical, square, slotted, relay outputs, etc. KJT standard photoelectric switches are available in a wide range of products, such as diffuse reflective, specular reflective, relay outputs, etc. KJT standard photoelectric switches are available in a wide range of products, including diffuse reflective, specular reflective, relay outputs, etc.



Product type KJT-FJ12
Reflective mode Diffuse reflective
Detection distance 0.1
Distance tolerance <10%(Sr)
Shell material Copper nickel plated or plastic
Operating voltage 10-30VDC
Ripple ≤10%
Switching hysteresis <15%
Light source Infrared light (880nm)
Suitable for large output currents 200mA
No load current ≤30mA
Voltage drop ≤2.5V
Sensitivity adjustment Trimmer 1tum
Response time <5ms
Short circuit protection Yes
Power-up protection Yes
Operating temperature -25°C- 55°C
 Environmental humidity 35 to 85% RH
Suitable for intensity light ≤10.000Lux
Protection level IP66



尺寸图

f3914998fe63a79d60a8f7809485a6e6

接线图4ae96743b5ff60d8f32b899a1d39c90f

场景图

1
