Description

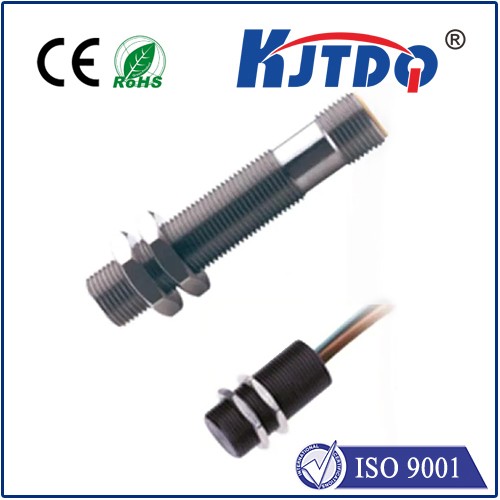

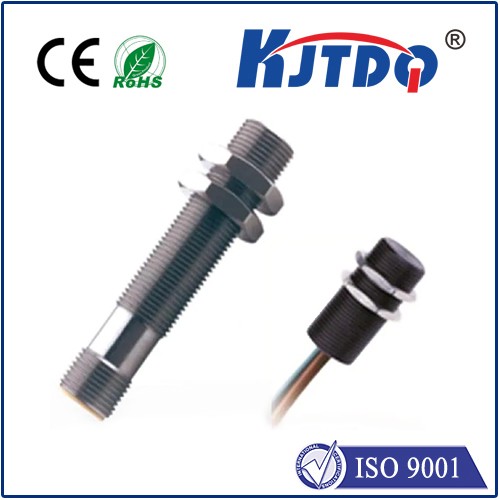

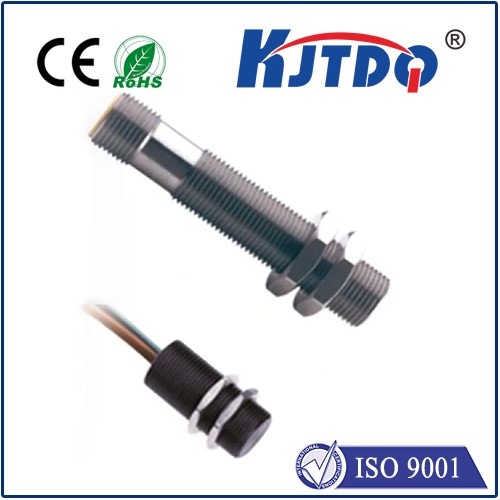

The GS1005-GS1007 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Features

From near zero speed up to 15 kHz sensing capability
•10 bit dynamic threshold direction offers:Automatically adjusting magnetic range/Self-compensating to target geometry
•Compatible with unregulated power supply
• RoHS compliant
• IP67

Application

•Speedometers
• Anti-lock braking systems
• Exercise equipment
• CNC machine tools
• Typical air gap of 1.5 mm*
