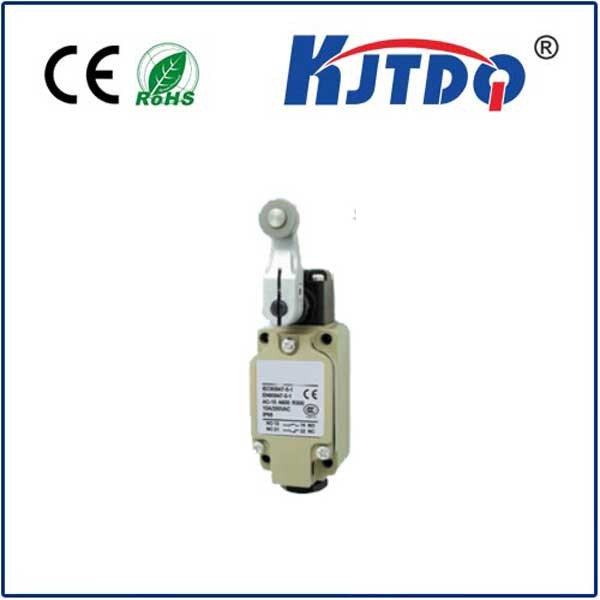

■Double-circuit travel switch, stable and reliable, small in size, economical and practical
■Made of aluminum alloy one-piece cast housing with solid structure
■ IP66 level protection, waterproof, oil-proof and dust-proof structure;
■ The built-in micro switch has a double reed design structure and has a long mechanical life.
■ Suitable for application scenarios with a lot of mist and water vapor
Rated voltage | 15A 250VAC |
operating speed | 1mm~2m/s |
operating frequency | Mechanical: 120 times/min |
Electrical: 30 times/min | |
Contact resistance | 15mΩ or less |
Insulation resistance | 100Ω or more (below 500VDC) |
Withstand voltage | Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute |
Between terminal and ground: 2,200VAC, 50, 60Hz for one minute | |
Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute | |
vibration | Action durability: 10~55Hz, 1.5mm double amplitude |
impact | Mechanical durability: more than 1000m/s2 (about 100G or more) |
Malfunction durability: 300m/s2 or more (about 30G or more) | |
Use ambient temperature | -10~+80 ℃ |
humidity | Maximum 95%RH |
Service life | Mechanical: more than 15 million times Electrical: more than 500,000 times |
Protection level | IEC:IP66 |
weight | About 258g |
Model |
KB-5101 |
KB-5102 KB-5103 |
KB-5104 | KB-5107 | KB-5108 | KB-5109 |
KB-5106 KB-5166 KB-5168 KB-5169 |
KB-5105 |
Max OF | 2720g | 2720g | 1000g | 1420g | 1360g | 2720g | 150g | 1200g |
Min RF | 910g | 910g | 227g | 280g | 227g | 910g | - | - |
Max PT | 1.7mm | 1.7mm | 20° | 20° | 20° | 1.7mm | 28mm | 227g |
Min OT | 6.4mm | 5.6mm | 70° | 70° | 70° | 4mm | - | 55° |
MaxMD | 1mm | 1mm | 10° | 10° | 10° | 1mm | - | 35° |
OP | 34 ± 0.8mm | 44.8± 0.8mm | - | - | - | 44.5 ± 0.8mm | - |
90 ± 10 ° |
