Datasheet excerpt: Technical data of  M100/MV100-RT/76a/103/115b

Product Description

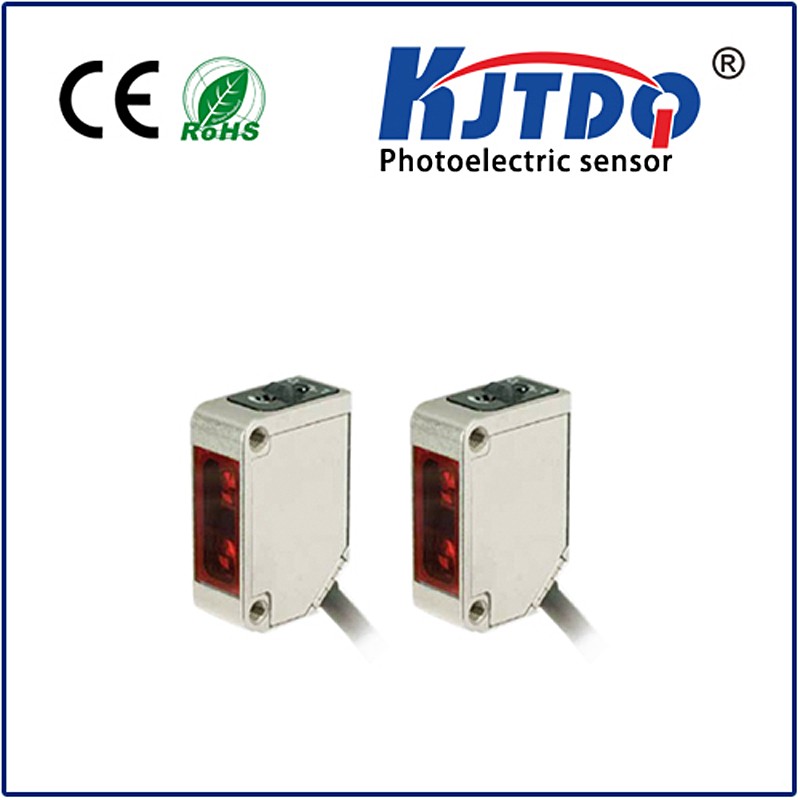

Thru-beam sensor, 10 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, fixed cable with M12 plug

System components
Emitter		M100-RT/76a/115b
Receiver		MV100-RT/103/115b
General specifications
Effective detection range		0 ... 10 m
Threshold detection range		15 m
Light source		LED
Light type		modulated visible red light
Diameter of the light spot		approx. 1 m at a distance of 15 m
Opening angle		approx. 2 °
Optical face		frontal
Ambient light limit		EN 60947-5-2
Functional safety related parameters
MTTFd		860 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Indicators/operating means
Operation indicator		LED green: power on
Function indicator		Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted
Control elements		sensitivity adjustment
Control elements		Light-on/dark-on changeover switch
Electrical specifications
Operating voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load supply current		Emitter: ≤ 15 mA Receiver: ≤ 8 mA
Input
Test input		emitter deactivation at +UB
Output
Switching type		The switching type of the sensor is adjustable. The default setting is: light-on
Signal output		1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage		max. 30 V DC
Switching current		max. 100 mA , resistive load
Voltage drop		≤ 1.5 V DC
Switching frequency		1000 Hz
Response time		0.5 ms
Conformity
Product standard		EN 60947-5-2
Approvals and certificates
UL approval		cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection		IP67
Connection		300 mm fixed cable with M12 connector, 4-pin
Material
	Housing	PC (Polycarbonate)
	Optical face	PMMA
Mass		approx. 40 g (emitter and receiver)
Tightening torque, fastening screws		0.6 Nm
Dimensions
	Height	31 mm
	Width	11 mm
	Depth	20 mm
Cable length		0.3 m

Classifications

System	Classcode
ECLASS 13.0	27270901
ECLASS 12.0	27270901
ECLASS 11.0	27270901
ECLASS 10.0.1	27270901
ECLASS 9.0	27270901
ECLASS 8.0	27270901
ECLASS 5.1	27270901
ETIM 9.0	EC002716
ETIM 8.0	EC002716
ETIM 7.0	EC002716
ETIM 6.0	EC002716
ETIM 5.0	EC002716
UNSPSC 12.1	39121528
