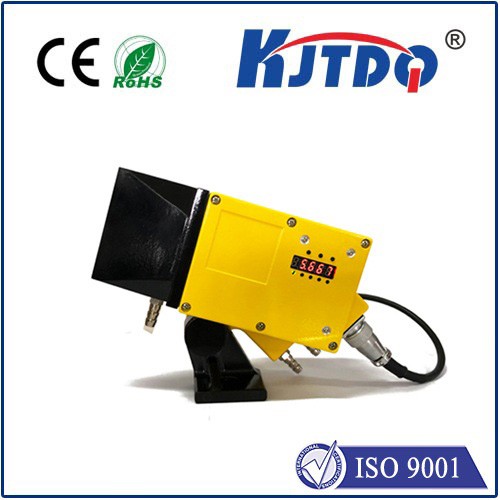

KJT-KDATC-II Laser Sensors for Liquid Aluminum Level Measurement

Products

KJT-KDATC-II Laser Sensors for Liquid Aluminum Level Measurement

●:Visible laser beam makes it easy to target the object under test
●:Flexible and expandable connection cables for power supply, analog output, RS485 output
●:Through the panel keys, various functional instructions can be input to start measurement or output measurement results.
●:With air cooling and water cooling system
●:Molten steel level/level height measurement for display and control of liquid level height
●:Measure the accurate position of bulk solids, liquids, anti-corrosion materials, and radiation objects in various containers and large tanks
  • Product Detail

KJT-KDATC-II laser aluminum water level meter adopts the phase comparison principle for measurement. The laser sensor emits visible laser beams of different frequencies, receives the scattered laser light returned from the measured object, compares the received laser signal with the reference signal, and then uses a microprocessor to calculate the distance between objects corresponding to the corresponding offset. The measurement accuracy can reach mm level.

1


Measuring range 0.1~30m
measurement accuracy 1mm
resolution 0.1mm
Repeatability 0.5mm
Operating temperature -10℃~50℃(Air cooling + air purging)
storage temperature -20℃~60℃
Supply voltage 10V~30VDC
measure time 10Hz(High temperature aluminum liquid surface)
Protection level IP65,Aluminum shell
Sensor size 220×124×60mm (L×W×H)
weight 1.9Kg(Includes mounting bracket)
Data interface RS232(RS422 needs to be customized);Baud rate 9600, ASCII format 8n1
Switching output Programmable switching output (center point and hysteresis range) with load capacity 0.5A
Operating mode DT(Measuring aluminum water surface)
Analog output Programmable measurement range, 4-20mA; load impedance ≤500Ω




12


13
