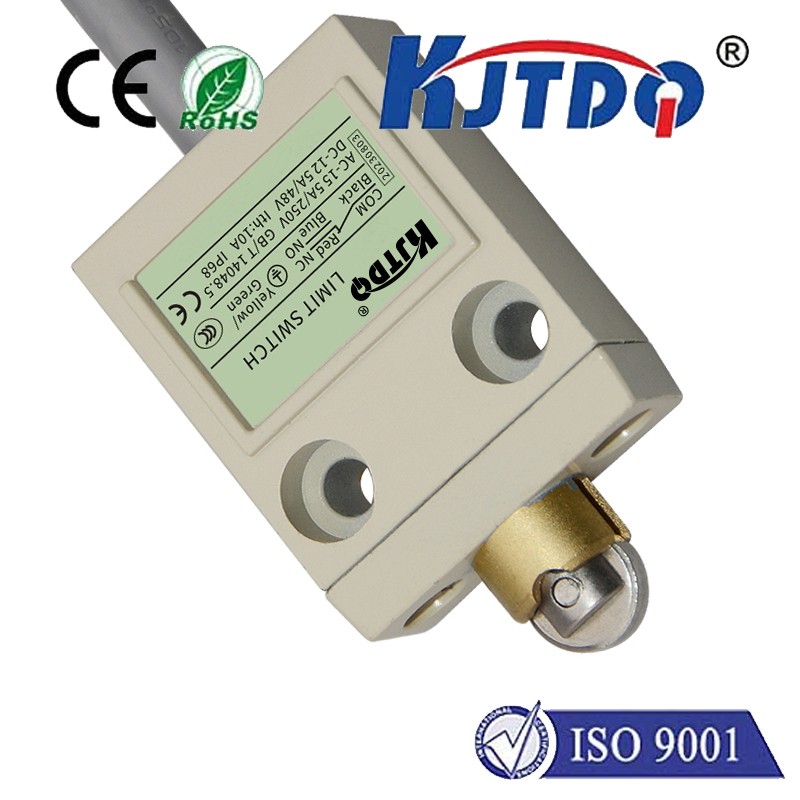

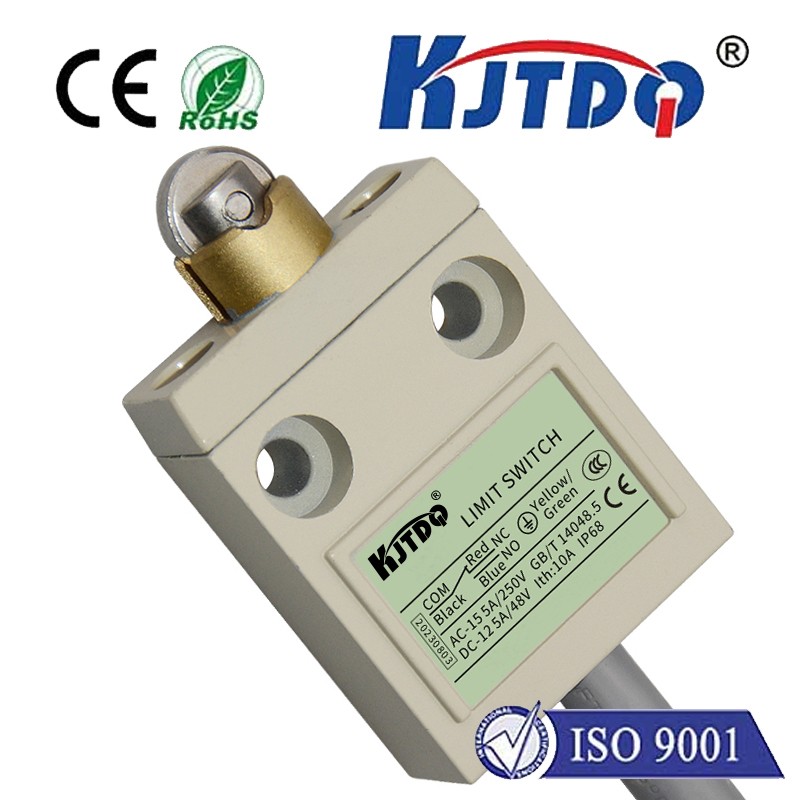

KJT Waterproof travel switch has the following characteristics

■ Aluminum alloy casting shell, sturdy and durable, with high mechanical strength;

■ The contact components are imported, the contact material is silver alloy, and the quality is guaranteed;

■ IP67 high-level protection, with waterproof, oil-proof and dust-proof structure, and can work underwater;

■ Comes with 3M long cable to facilitate user wiring;

■ Suitable for open-air equipment, shield equipment, painting equipment, etc. in the wild or in situations where waterproof and oil-proof requirements are relatively high.

Rated voltage	5A 125V,3A 250VAC
operating speed	1mm~1m/s
operating frequency	Mechanical: 120 times/min
	Electrical: 30 times/min
Contact resistance	<15m Ω
Insulation resistance	100Ω or more (below 500VDC)
Withstand voltage	Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute
	Between terminal and ground: 1,500VAC, 50, 60Hz for one minute
	Between terminals and no-current metal: 1,500VAC, 50/60Hz for one minute
vibration	Action durability: 10~55Hz, 1.5mm double amplitude
impact	Mechanical durability: 1000m/s2 or more (about 30G or more)
	Malfunction durability: 500m/s2 or more (about 30G or more)
ambient temperature	-10~+70 ℃
humidity	Maximum 95%RH
Service life	Mechanical: more than 10 million times Electrical: more than 200,000 times
Protection level	IEC:IP67
weight	About 360g (cable length 3m)

Type	KH-4203
Max OF	1200gf(5.69N)
Min RF	450gf(1.47N)
Max PT	1.8mm
Min OT	3mm
Max MD	0.2mm
OP	28.5 ± 1mm
