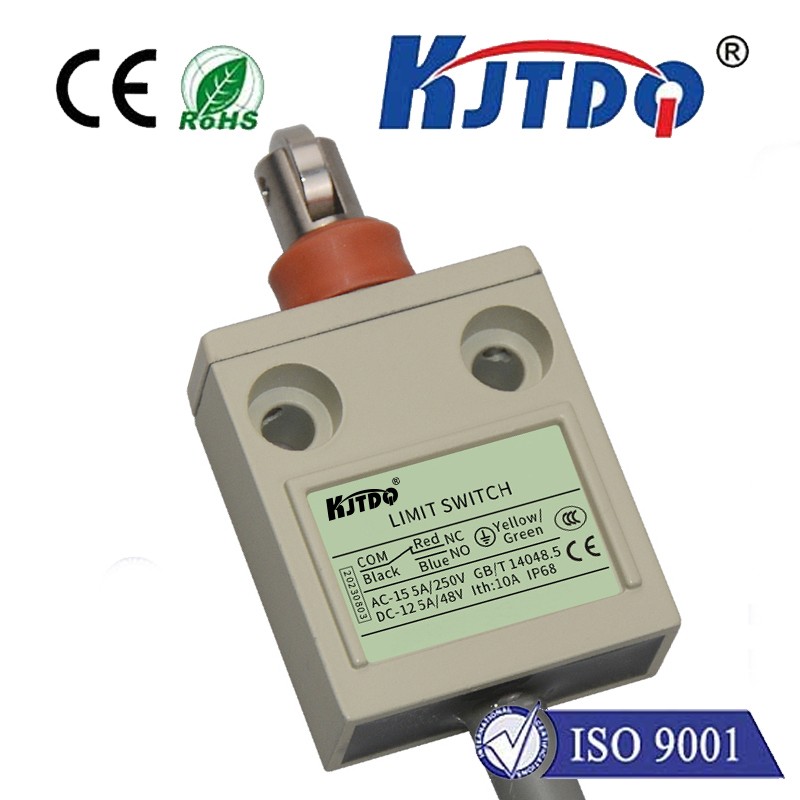

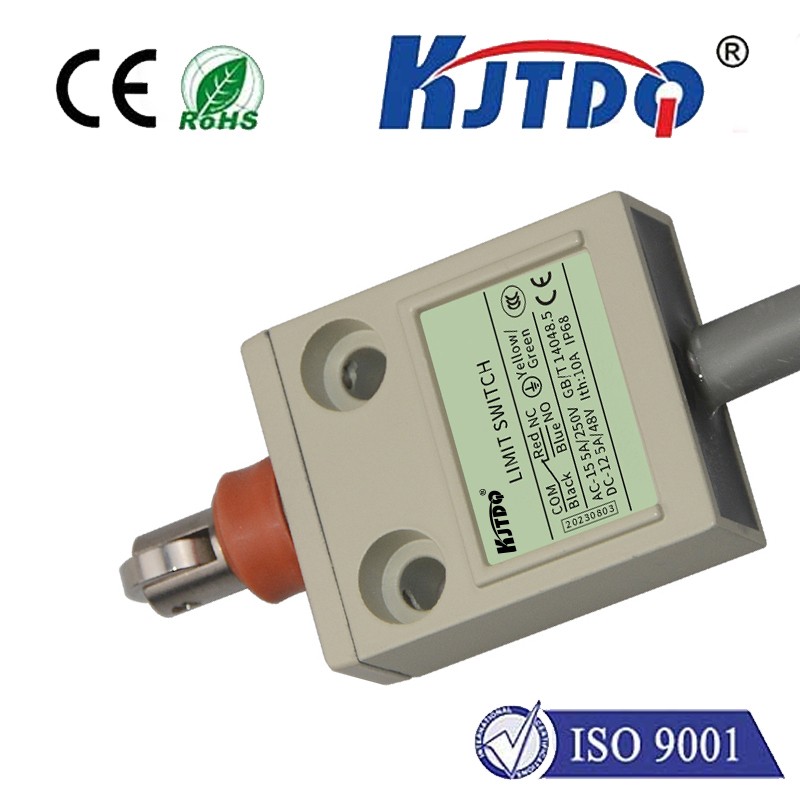

KJT Waterproof travel switch has the following characteristics
■ Aluminum alloy casting shell, sturdy and durable, with high mechanical strength;
■ The contact components are imported, the contact material is silver alloy, and the quality is guaranteed;
■ IP67 high-level protection, with waterproof, oil-proof and dust-proof structure, and can work underwater;
■ Comes with 3M long cable to facilitate user wiring;
■ Suitable for open-air equipment, shield equipment, painting equipment, etc. in the wild or in situations where waterproof and oil-proof requirements are relatively high.
Rated voltage | 5A 125V,3A 250VAC |
operating speed | 1mm~1m/s |
operating frequency | Mechanical: 120 times/min |
Electrical: 30 times/min | |
Contact resistance | <15m Ω |
Insulation resistance | 100Ω or more (below 500VDC) |
Withstand voltage | Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute |
Between terminal and ground: 1,500VAC, 50, 60Hz for one minute | |
Between terminals and no-current metal: 1,500VAC, 50/60Hz for one minute | |
vibration | Action durability: 10~55Hz, 1.5mm double amplitude |
impact | Mechanical durability: 1000m/s2 or more (about 30G or more) |
Malfunction durability: 500m/s2 or more (about 30G or more) | |
ambient temperature | -10~+70 ℃ |
humidity | Maximum 95%RH |
Service life | Mechanical: more than 10 million times Electrical: more than 200,000 times |
Protection level | IEC:IP67 |
weight | About 360g (cable length 3m) |
Type | KH-4214 |
Max OF |
1200gf(5.69N) |
Min RF | 450gf(1.47N) |
Max PT | 1.8mm |
Min OT | 3mm |
Max MD | 0.2mm |
OP | 28.5 ± 1mm |
