KJT-L1240AU Axial Intelligent Digital Pressure Controller

Products

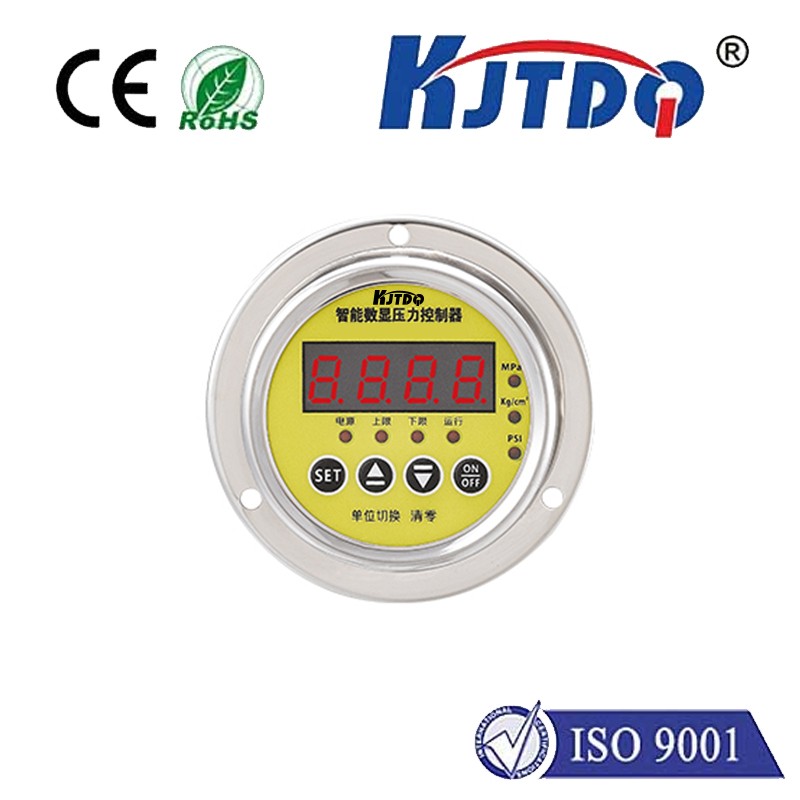

KJT-L1240AU Axial Intelligent Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304Stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA
  • Product Detail

1

KJT-L1240AU intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.




Type Product Description
KJT-L1240C
Axial Intelligent Digital Pressure Controller
output method 1240AU Dual Relay Outputs
2 NO
3
NO+NC
Transmission output 0 No output
2 4-20mA output
Accuracy level 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply W DC24V battery powered
A
AC220 Vpower supply
Measuring range -100kPa-60MPa Customer choice


2

KJT-L202AU Axial Intelligent Digital Pressure Controller

3

2

4


12 (1)

PREVIOUS:KJT-L202AU Axial Intelligent Digital Pressure Controller

NEXT:KJT-L204 Intelligent Digital Pressure Controller
