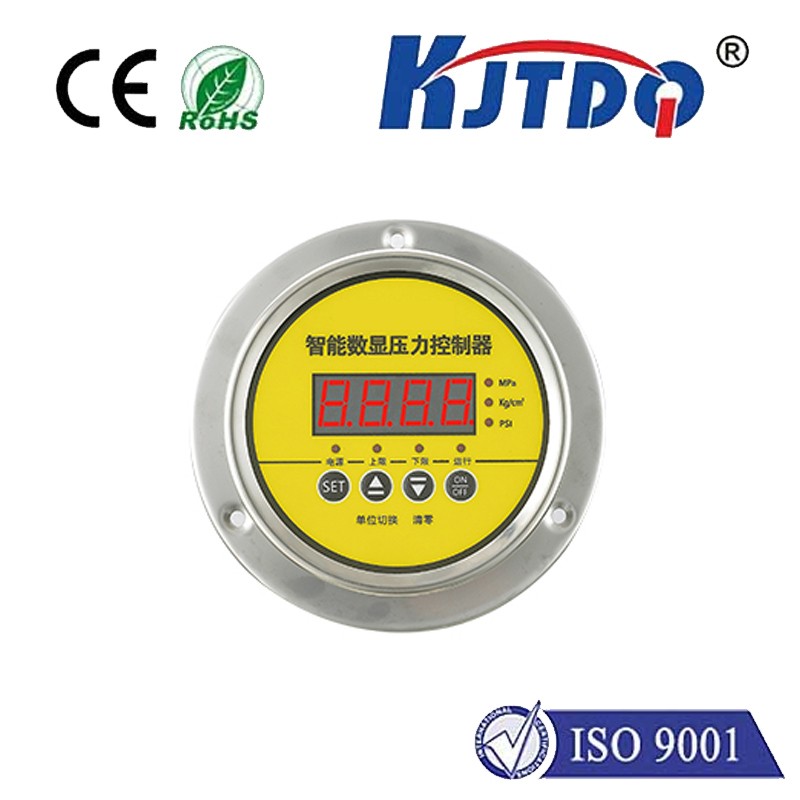

KJT-L202AU intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.

Type		Product Description
KJT-L202AU		Axial Intelligent Digital Pressure Controller
output method	202AU	Single relay output
	2	NO
	3	NO＋NC
Transmission output	0	No output
	2	4-20mA output
Accuracy level	1	1％
	2	0.5％
process connection	A	20*1.5
	B	G1/2
	C	G1/4
	D	Other orders are specified
Power supply	W	DC24Vbattery powered
	A	AC220Vpower supply
	B	AC380Vpower supply
Measuring range	-100kPa-60MPa	Customer Choice
