KJT-LCX-I Type Chute Clogging Detector

Conveyor belt protection devices

KJT-LCX-I Type Chute Clogging Detector

  • Product Series:KJT-LCX-I Type Chute Clogging Detector
  • Load current:AC380V 5A,DC24V 5A
  • Contact method:NO 1. NC1; NO 2. NC 2. (please specify when ordering)
  • Reset mode:auto
  • Appliance life:>100,000 times
  • Protection class :IP65/IP67
  • Product Detail

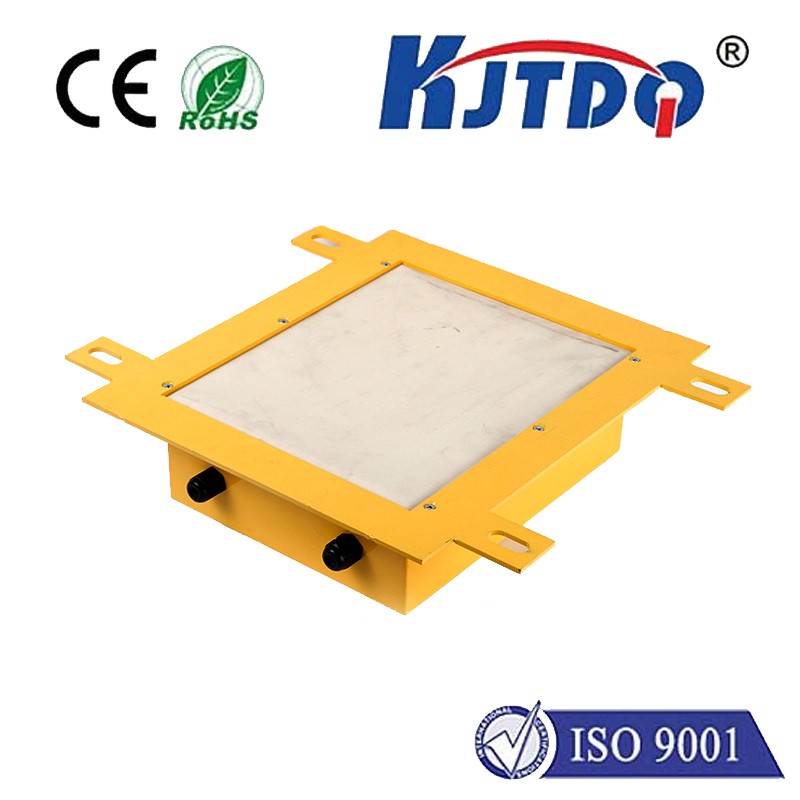

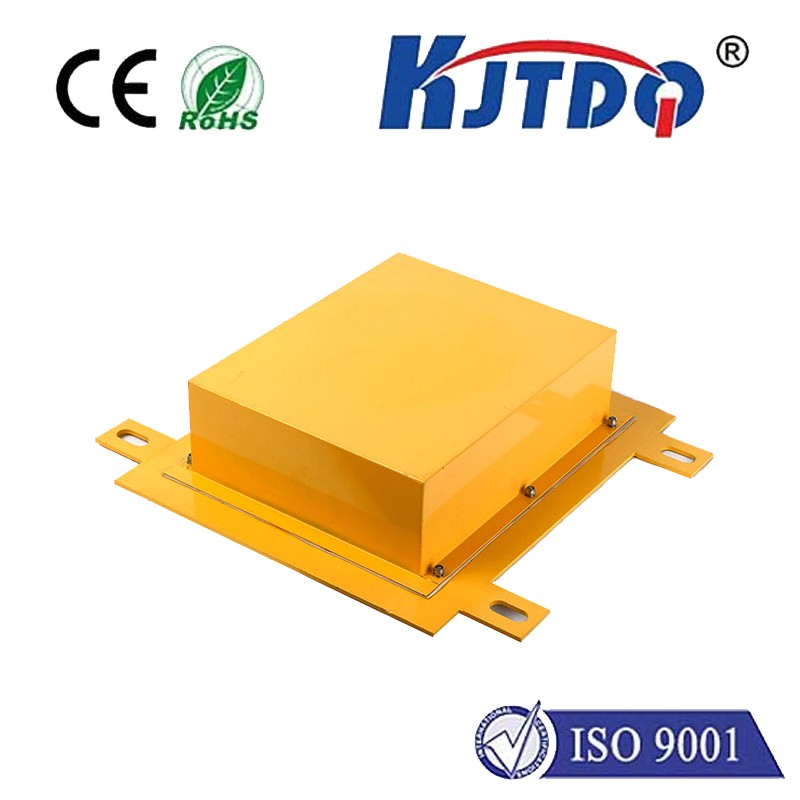

KJT-LCX-I square chute clogging detector adopts a side-pressure movable door structure. After troubleshooting, the movable door automatically resets when the pressure is pushed. The Tao shell with anti-corrosion layer, heavy-duty micro switch point, high sensitivity, function Only 0.9Kg of force is needed to trigger the switch. The imported travel switch is used in the machine, which has sensitive action and high reliability. The chute clogging protection device adopts a door-type structure with a spring reset. When the material is clogged in the chute, the piled material puts pressure on the side wall of the chute, thereby pushing the originally installed movable door outward. When the movable door deflects at an angle When, its control switch action sends out warning, vibration or shutdown signals. When the blockage fault is eliminated, the movable door automatically resets under the action of the spring and returns to its original state. Status data can also be sent to the remote control room through the ground industry encoder.

主要技术参数

Ambient temperature -30℃~+50℃
Relative humidity

N LESS THAN O85%

Action force
Extreme angle 10°
Action force 0.9Kg
Number of contacts NO1.NC1;NO2. NC2. (please specify when ordering)
Contact rating AC380V/5A
Reset mode AUTO
Reliability >100,000 times
Protection level IP65/IP67

尺寸图


1692623710814


微信图片_20240103095443

KJT-LCX3

3

KJT-TS-I (1)

●The switch must be balanced and pressed on the fixed bracket of the rack;

●Tie the steel wire rope to the pull rings at both ends, and the rope on each side should not exceed 40m (it should be shortened when there is a slope);

●The pressure on the pull rope should be appropriate to ensure reliable reset of the switch;

●The drawstring is set parallel to the tape, and a lifting ring is added every 10m.

●The factory can purchase steel wire ropes according to the specifications required by users.

The address encoder uses a self-designed protocol to provide an RS485 communication interface to connect to the comprehensive protection instrument. By using shielded twisted pairs and communication repeaters, the transmission distance can reach 1km.


GROUP TERMINAL WIRING INSTRUCTIONS
AC 220V L

L/N IS CONNECTED TO AC 220V POWER SUPPLY TO POWER THE

ADDRESS ENCODER.L AND N ARE RESPECTIVELY EQUIPPED WITH TWO

INPUT INTERFACESBOTH OF WHICH CAN BE USED.

N
INPUT 2 HARDCONTACT COM2 HARD CONTACT COMMON TERMINAL
NC2 HARD CONTACT NORMALLY CLOSED POINT
NO2 HARD CONTACT NORMALLY OPEN POINT
RS485 A

A&B ARE RESPECTIVELY CONNECTED TO RS485 SIGNAL LINES

AND CONNECTED TO A&B ON THE COMPREHENSIVE INSUR-

ANCE INSTRUMENT THROUGH THE COMMUNICATION BUS.

B

KJT-TS-I (1)



场景图

d25bccef52ed6fc24d8045760301c48

PREVIOUS:KJT-LS-II Type Address Code Pull Rope Switch

NEXT:KJT-PK Stainless Steel Deflection Switch
