Applications.

Inductive proximity sensors with analog output are electronic signal generators for measuring and controlling positional deviations in a wide range of applications.

For example:

--Measurement of bends and offsets

-Measurement of width and height

-Control of dimensional stability

-Control of positioning

-Control of centering or eccentricity.

Principle of operation:

When a metal object close to the analog sensor sensing surface, so that the analog sensor LC oscillation amount of attenuation, the use of this change in the amount of conversion current output, the size of the output current, directly and the metal object and the analog sensor sensing surface of the distance between the distance between the close or in direct proportion to the relationship between the (see close to the distance and the output current relationship curve diagram).

Standard detection object:

With 1mm thick square steel plate, side length and analog sensor induction surface diameter equal to the electrical soft iron (i.e., A3 steel)

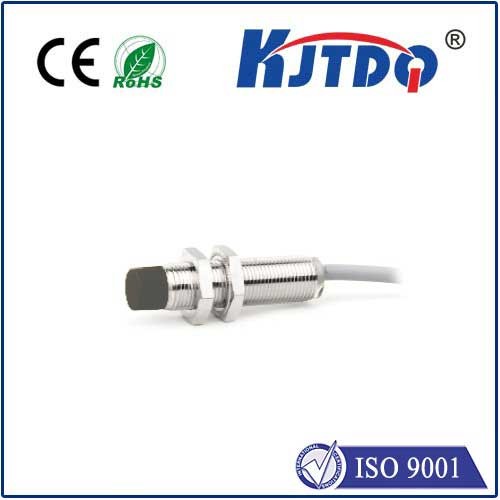

Product number	KJT-WJ12C
Installation method	Non-Flush
Detection distance	0.1-4mm
product specifications	M12*50
ripples	10%
No load current	<35mA
Operating Voltage	15-30VDC
Load Resistance	Current output：4-20mA/400Ω Max.
	Voltage output：0-10VDC/≤2KΩ
	Current + voltage dual output：0-20mA/400Ω; 0-10VDC/≤2KΩ
linearity	<5%
Repeat accuracy	0.02mm
Operating temperature	0℃-70℃
temperature drift	< ±5%(Sr)
Reverse polarity protection	YES
output signal	PNP-ANALOG
On-off level	500Hz
Sensing surface material	POM
LED display	NO
Protection level	IP67
