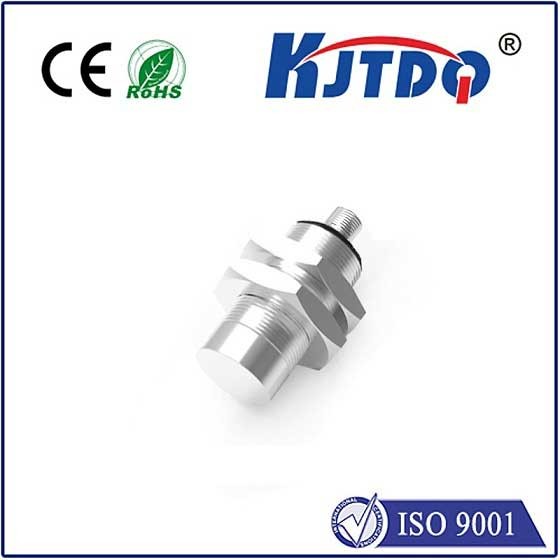

M30 Non-Flush All Metal Inductive Proximity Sensor

Metal face proximity sensor

M30 Non-Flush All Metal Inductive Proximity Sensor

  • Product Type:KJT-J30QS
  • Installation Method:Non-Flush
  • Detection distance:15mm
  • Working voltage:10-36VDC / 90-250VAC
  • Output Mode:multiple output modes
  • Ambient temperature:-25℃~+70℃
  • Outlet method:Connector M12,4-pin
  • Product Detail

    KJT All-Metal proximity switch detects various metal objects, fast, no contact, extremely long life, reliable action, stable performance, fast frequency response, long service life, strong anti-interference ability, waterproof, shockproof, corrosion resistance and other characteristics . The integrated stainless steel shell including the sensing surface is absolutely free from any liquid or gas (cannot corrode stainless steel) during the entire working period. The material at the sensing surface is relatively thick, so it has better pressure resistance. The full metal housing makes them more mechanically resistant than traditional sensors. Therefore, it overcomes the weakness of traditional inductive sensors that are easily damaged.



● Detect various metal objects DC 2 NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2 NC
● Shell material: Nickel copper alloy DC 3NPN NO
● Protection grade IP67(IEC) DC 3NPN NC
● Ambient temperature:-25℃~+70℃ DC PNP NO

DC 3 PNP NC

AC 2 NO

AC 2 NC


1



Product Model
KJT-J30QS
Installation method Non-Flush
Detection distance
15mm
Working temperature
-25~+70℃
Specifications M30*1.5*78
Operating Voltage
10-36VDC / 90-250VAC
Ripples <10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 250Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <3.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method Connector M12,4-pin
Protection level IP67
Sensing surface material Stainless steel
Shell Material Stainless steel
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

M30-C12

3

接线图

4


9
