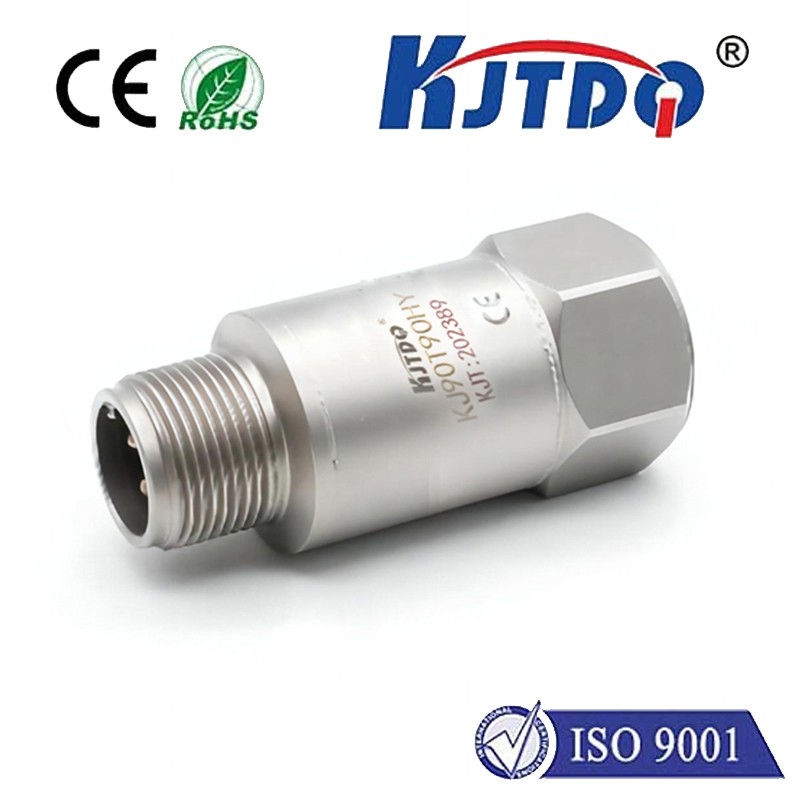

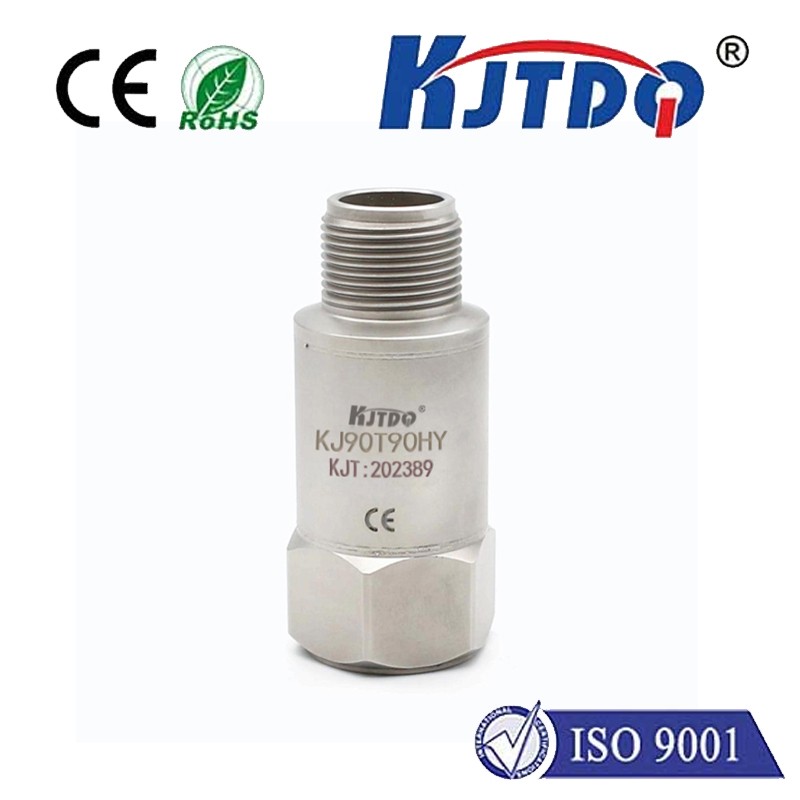

Piezoelectric vibration speed sensor KJ90T90HY

Speed Sensor

Piezoelectric vibration speed sensor KJ90T90HY

  • Product Series:Piezoelectric vibration speed sensor KJ90T90HY
  • Protection level:IP65
  • Measuring range (effective value):0~20mm/sec
  • Supply voltage:15VDC~36VDC
  • output method:5/8-24 Four core socket
  • ambient temperature:-40°C~+85C
  • Installation method:1/4-28
  • connecting cables:MIL four-core connecting cable 3 meters
  • Product Detail

The piezoelectric vibration speed sensor can replace the traditional magnetoelectric vibration speed sensor in industry. Compared with the magnetoelectric type, it has the advantages of wide frequency response, good linearity and long working life. The sensor measures vibration amplitude, vibration intensity or vibration speed.


           ★Output speed (4-20mA) and temperature signal (4-20mA) simultaneously

           ★Isolated output, industrial site monitoring, strong anti-interference performance

           ★Mainly used for absolute vibration speed measurement of equipment failure

1


dynamic characteristics

Measuring range (effective value)

0~20mm/sec
output 4~20mA(Valid values)
Amplitude nonlinearity <2%
Frequency response 10~1,000Hz(±1dB)
Lateral sensitivity ratio ≤5%

Electrical properties

Supply voltage 15VDC~36VDC
Install ground insulation ≥10^8Ω

Environmental characteristics


Operating temperature

-40°C~+85°C

Impact limit (peak value) 2000 g
temperature response See attached picture for temperature curve

physical properties

structure type cut
Housing material 304 stainless steel
output method 5/8-24 four-core socket
Installation method 1/4-28
Protection level IP65
weight ~100g
appendix
mounting bolts M6 inner hexagon
connecting cables MIL four-core connecting cable (3 meters)



1GAI

2GAI


2


12GAI

3


13GAI

7GAI

4


场景图
