KJT-M30 Non-Flush Analog proximity Sensor Cable

Analog proximity sensor

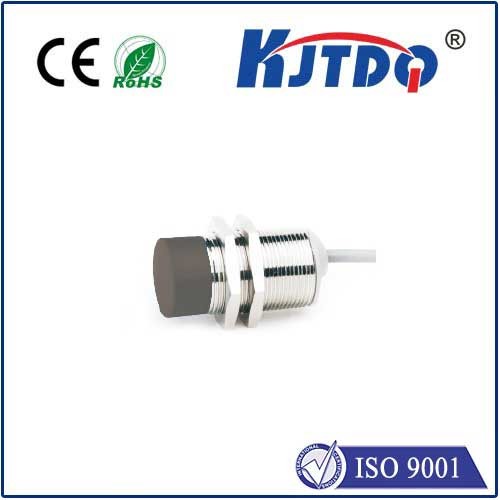

KJT-M30 Non-Flush Analog proximity Sensor Cable

  • Product Type:KJT-WJ30
  • Installation Method:Non-Flush
  • Detection Distance:0.1-13MM
  • Voltage:10-36VDC
  • Output:PNP-Analog
  • Operating temperature:-25℃~+70℃
  • Connection:2M PVC Cable
  • Product Detail

Applications.

Inductive proximity sensors with analog output are electronic signal generators for measuring and controlling positional deviations in a wide range of applications.

For example:

--Measurement of bends and offsets

-Measurement of width and height

-Control of dimensional stability

-Control of positioning

-Control of centering or eccentricity.

Principle of operation:

When a metal object close to the analog sensor sensing surface, so that the analog sensor LC oscillation amount of attenuation, the use of this change in the amount of conversion current output, the size of the output current, directly and the metal object and the analog sensor sensing surface of the distance between the distance between the close or in direct proportion to the relationship between the (see close to the distance and the output current relationship curve diagram).

Standard detection object:

With 1mm thick square steel plate, side length and analog sensor induction surface diameter equal to the electrical soft iron (i.e., A3 steel)

参数


Product number KJT-WJ30C
Installation method Non-Flush
Detection distance 0.1-13mm
product specifications M30*78
ripples 10%
No load current <35mA
Operating Voltage 15-30VDC
Load Resistance Current output:4-20mA/400Ω Max.
Voltage output:0-10VDC/≤2KΩ
Current + voltage dual output:0-20mA/400Ω; 0-10VDC/≤2KΩ
linearity <5%
Repeat accuracy 0.02mm
Operating temperature 0℃-70℃
temperature drift < ±5%(Sr)
Reverse polarity protection YES
output signal PNP-ANALOG
On-off level 500Hz
Sensing surface material POM
LED display NO
Protection level IP67





外观尺寸

M30-55

尺寸


接线图



PREVIOUS:KJT-M30 Flush Analog proximity Sensor Cable

NEXT:KJT B40 Non-Flush Analog Inductive Proximity Sensor Plug-in
