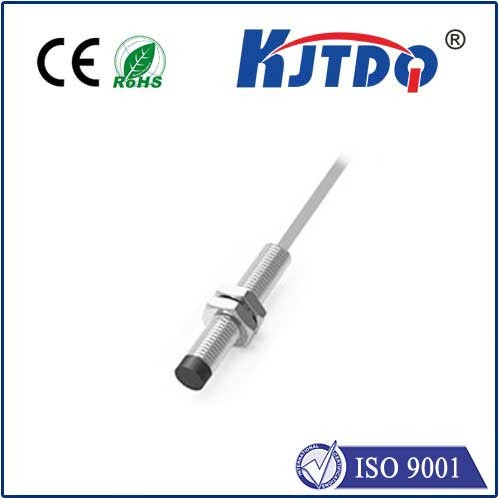

KJT ultra-small proximity switch, micro integrated circuit metal detector. Specifications: φ3, φ4, M4, M5, φ6.5, M8, etc., can be installed in small and compact spaces, are simple to install, have high working precision and good anti-interference performance, and are suitable for high-precision equipment and micro metal detection

● Detect various metal objects	DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions	DC 2NC
● Shell material: Nickel copper alloy	DC 3NPN NO
● Protection grade IP67(IEC)	DC 3NPN NC
● Ambient temperature:-25℃~70℃	DC PNP NO
	DC PNP NC



Product Model	KJT-J8
Installation method	Non-Flush
Detection distance	2mm
Working temperature	-25℃~70℃
Specifications	D6.5*45
Operating Voltage	10-36V DC
Ripples	<10%
No-load current	<10mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	1000Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<3.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	2M PVC Leads
Protection level	IP67
Sensing surface material	PBT
Shell Material	Nickel plated copper
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
