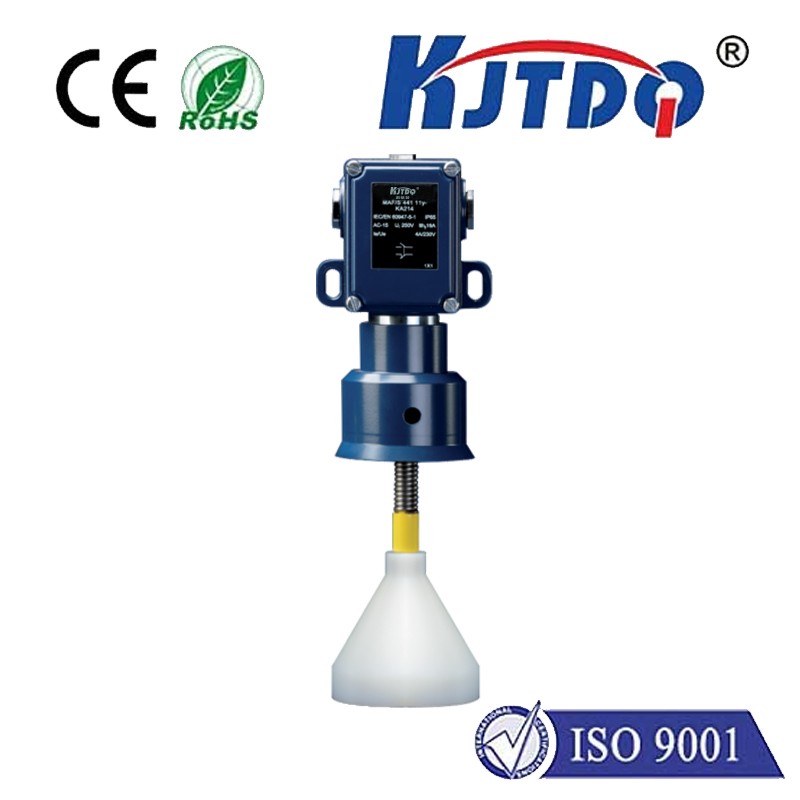

KJT heavy-duty limit switch is a mechanical control switch, which is used for conveyor belt deviation prevention, crane over-roll protection, and rope pull switch. Taking advantage of its high reliability, it is widely used in steel equipment, large conveying machinery, loading and unloading machinery and cement equipment. Resistant to harsh environments. The glass sealed contacts are filled with inert gas and are not affected by the environment. Resistant to vibration, impact, and wide range of applications.

Product parameters
model	MAF/S 441-11Y
Principle of action	Mechanical
Shell raw materials	aluminum
Detect cone material	plastic
Contact material	silver
gross weight	1,460g
Normally closed quantity (NC)	1
Normally open quantity (NO)	1
operating units	detection cone
Mechanical life	1,000,000 operations
driving force	14N
Minimum drive speed	1mm/min
Maximum action speed	1m/sec
Circuit connection	Screw connection M20 x 1.5
Minimum cable cross-section	1.5mm²
Maximum cable cross section	2.5mm²
Notice	Cable part: including conductor ferrules
Product Size
length, width and height	61mm*106mm*438mm
Detection cone diameter	90mm
Application environmental conditions
Protection level	IP65
ambient temperature	-30 ... +90°C
Rated insulation voltage	250 VAC
Rated impulse withstand voltage	4kV
Electrical data
Thermal test current	16A
Application category	AC-15: 250 V / 4 A
switching element	Normally open contact, normally closed contact
Switching principle	quick action
Maximum bounce duration	5 ms
Maximum switching time	35 ms



NOTE Switch travel diagram   Contact closed   Contact open   Set range   breakpoint   Definitely opening order/angle VS   NO contact adjustment range VÖ  NC contact adjustable range N   After the trip
