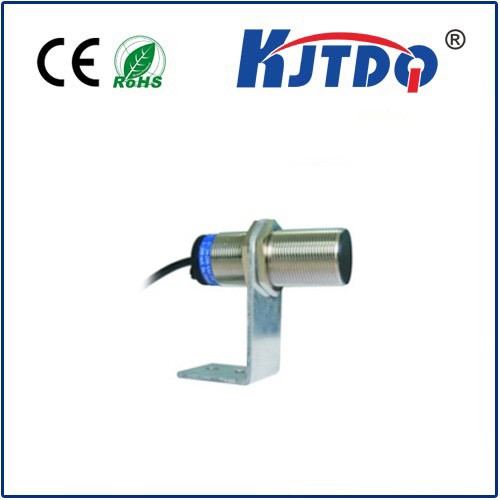

KJT-Rotary Detector Type 11801

Speed Sensor

KJT-Rotary Detector Type 11801

Operating power supply::24VDC/110VAC/220VAC
Insulation resistance: :>500MΩ
Ambient temperature::-20℃~+60℃
Overall dimensions::Ф30×80mm
Protection level: :IP66
  • Product Detail

KJT speed control switch products are mainly developed according to the actual needs of customer sites. The products have a wide range of electricity, and can be applied to 24VDC─110VAC─220VAC (different voltage levels are configured with intermediate relays of different voltages), bringing unified purchasing to users. Easy installation and good interchangeability. The product can effectively and timely handle electrical and process failures such as stalling, jamming, overloading, slow rotation, belt slipping, transmission chain (belt) falling off, transmission shaft breakage, etc. that often occur in motors and mechanical transmission devices. It can play a role in ensuring production and maintaining equipment.

参数

Working power supply 220VAC±15%
Insulation resistance >500MΩ
Ambient temperature -20℃~+60℃
Overall dimensions Ф30×115mm
Protection level IP66
Escape time 3-17 seconds
Detection distance H2 ≤8mm
Load current ≤5A
Output signal switch signal
Environmental humidity ≤90%
Weight 0.1Kg
Detection speed range 1~200 rpm
Response time <2mS
Suitable for small safe working distance H1 ≥20mm


3

官网霍尔磁性速度传感器


外观尺寸

l. Remove the end cap, drill ≥ Φ12 holes in the centre of the end cap, drill Φ5 holes in the lower part of the end cap, tap M6 (matching with the two holes of the rotary detector bracket) and then fix the end cap and the bracket with screws.

 2. Drill Φ5 holes in the shaft head and tap M6, 10-15mm deep.

3、Tighten the double-headed screw

4、Assemble the end cover

5、Install the detecting piece, H1≥20mm and fix it with nut.

6、Install the rotary detector, adjust H2 = 4mm

Some machines are driven by a longer shaft, out of the end cover, for such cases only need to make the test piece into a turn-shaped fixed on the shaft head (please note that the plane of the test piece and the rotary detector to keep the plane of the probe parallel to the rotary detector. If installed on a metal base, please pay special attention to the distance of H1 in order to prevent the strong interference of magnetic materials that may cause the equipment to be unable to start).
