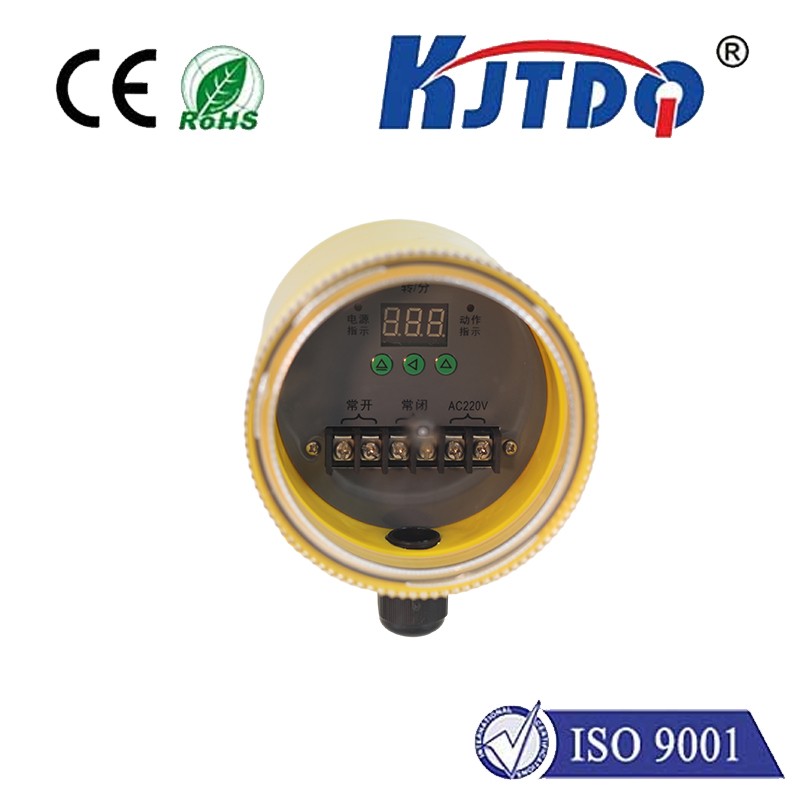

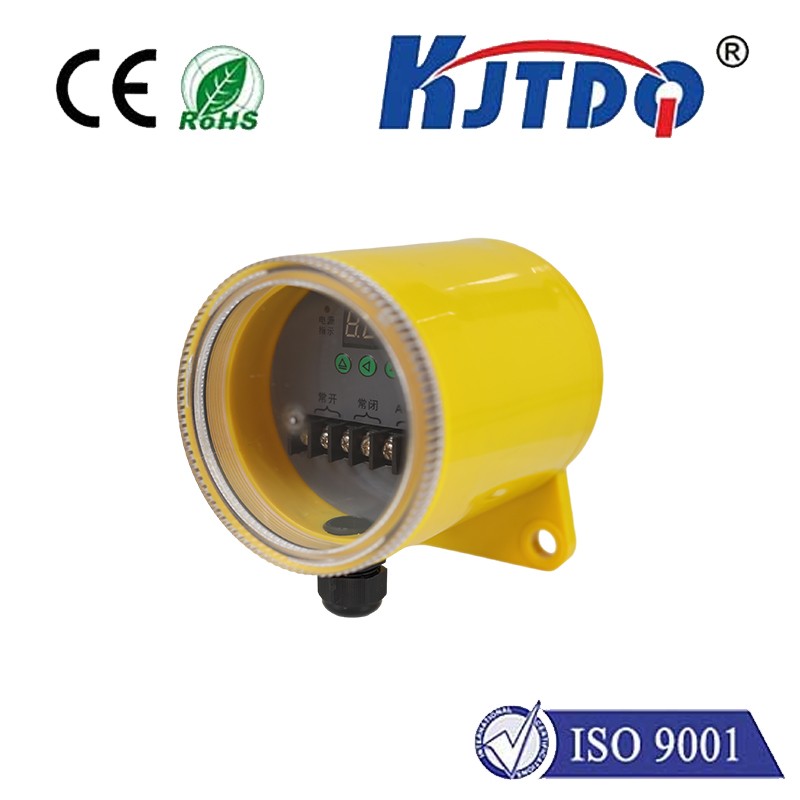

KJT-SJ Non-contact Digital Slip Detector

Conveyor belt protection devices

KJT-SJ Non-contact Digital Slip Detector

  • Product Series:KJT-SJ Non-contact digital slip detector
  • Load current:AC380V 5A,DC24V 5A
  • Contact method:NO 1. NC1; NO 2. NC 2. (please specify when ordering)
  • Reset mode:Auto
  • Appliance life:>100,000 times
  • Protection class:IP65/IP67
  • Product Detail

KJT-SJ non-contact digital slip detector is an economical, reliable, simple and versatile monitoring device for shaft speed and other rotating devices. When it detects that the current speed signal is lower than or higher than the normal speed range, the switch outputs a set of switching signals for alarm or shutdown. No moving parts, no wear, long safety life, integrated structure, centralized control device, simple setting or troubleshooting. The shell adopts a waterproof and dustproof design, and two bolts fix the shell, so it can be directly installed and used in harsh environments.

1

Product Paramenters
Ambient temperature -30℃~+50℃
Relative humidity 0~85%
Speed range 0.5-9.99m/s
Delay time 10 seconds
Pulse 6-120Hz
Number of contacts 1 normally open, 1 normally closed (2 groups of normally open and 2 groups of normally closed can be added as needed)
Contact rating AC380V 5A
reset mode Auto
Electrical life >100,000 times
Protection level IP65/IP67
Operating Voltage AC  220V

尺寸图kjt-sj-1


88


场景图

d25bccef52ed6fc24d8045760301c48
