KJT-Stainless steel travel limit switch EX

Limit switch

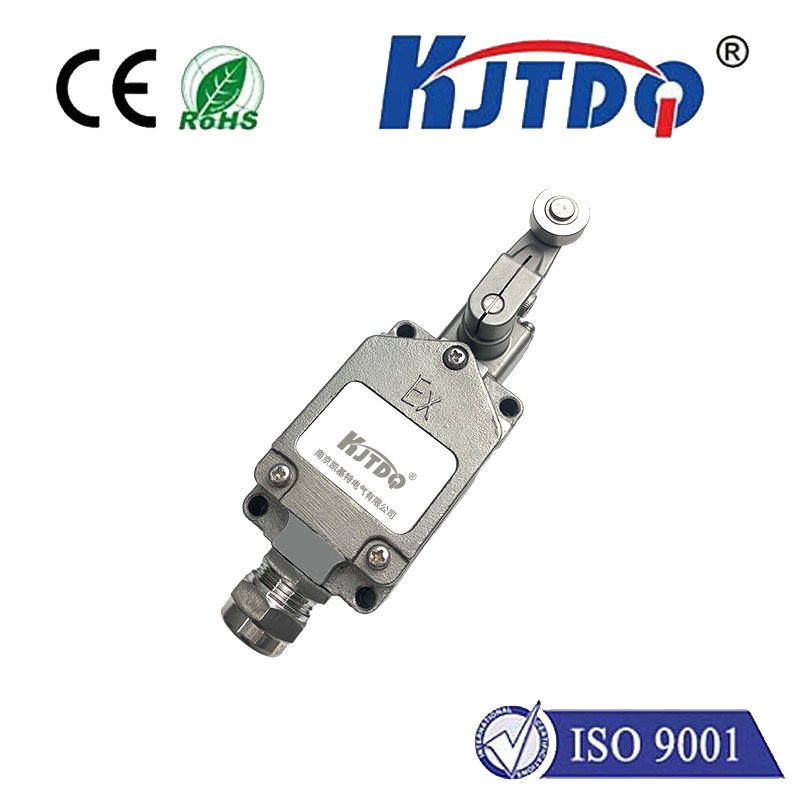

KJT-Stainless steel travel limit switch EX

  • product type:EX
  • Protection level:IP66/IP67
  • Number of contacts:1NO+1NC
  • Contact rating:5A/220V
  • Product Advantages:High temperature, oil, water or pressure resistant
  • Application areas:Industrial machinery, electric power, chemical industry, paper making, steel and other industries
  • Product Detail

KJT stainless steel travel switch is a fully enclosed contact switch made of stainless steel material. One group is normally open and one group is normally closed. The maximum allowable current is 5A/AC 220V (other voltages are subject to reservation). The contacts can be used at high temperatures after special treatment. It can be used for a long time in the environment without being damaged by oxidation or pollution.

KJT series stainless steel travel switches have a maximum temperature of 350°C and can be divided into more than ten specifications such as roller arm type, adjustable rod type, pressure plunger type and roller pressure column type, which can meet the requirements of different occasions. Widely used in electric power, chemical industry, petroleum, textile, steel and other industries.

1

 Characteristics


Operation speed

1mm to 2m/S


Action frequency

Mechanically:120 times/minute Electically:30 times/Minute


Contact resistance

Under 15mΩ(initial)


Insulation resistance

100MΩ以上(500VDC) 100mΩ above (at 500VDC)


Bearing voltage


Non-contact end:1,000VAC,50/60Hz for one minute
Current parts and noncurrent parts and end and connect position :2,200VAC,50/60Hz for one minute


Vibration

Action:10 to 55Hz,1.5mm pairs swing


Hitting


Machine:1,000m/Sec2(about 100G,S)
Action:300m/Sec2(about 30G,S)


Ambient temperature

use: -60 to +350℃


Humidity

Max 95% RH


Serve life


Mechanically:15,000,000 times above(at rated ot)
Electrically:500,000 times above


Weight

 About 275g


Protection structure

IEC specification:IP66/IP67


Note:

1. The power factor of the inductive load is above 0.4 (AC), and the time constant is below 7msec (DC).

2. The inrush current of the light bulb load is 10 times the steady state current, and the inrush current of the motor load is 6 times the steady state current.


3

2 (4)

4
