KJT-TBS Waterproof and Oilproof Safety Curtain

Safety light curtain

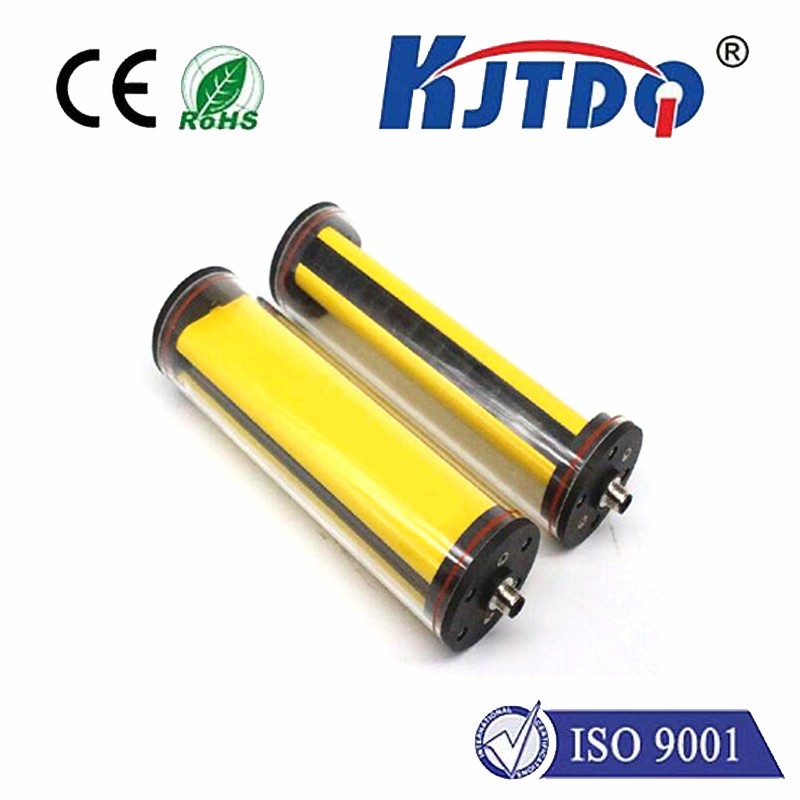

KJT-TBS Waterproof and Oilproof Safety Curtain

  • Product Model:KJT-TBS
  • Optical axis spacing:10mm~40mm
  • Object size:φ15mm~φ45mm
  • Output:NPN/PNP
  • Detection distance:0-3M
  • Power consumption:<8W
  • Product Detail

KJT-TBF series safety grating (safety light curtain), protection grade IP68, can work normally underwater, has strong light/electromagnetic interference, low power consumption design and short response time. High reliability, safe to use.

主要技术参数


Models KJTFS10 series KJTFS20 series KJTFS30 series KJTFS40 series
Number of optical axes 8、12 to 32 4、6、8 to 32 4、6、8 to 32 4、6、8 to 32
optical axis distance 10mm 20mm 30mm 40mm
Suitable for small protective objects φ15mm φ25mm φ35mm φ45mm
Protection width Optical axis spacing×(number of optical paths-1)
Detection range 0-3m
Supply voltage DC24V
Power consumption <8W
Response time 3-32ms
Output NPN NPN transistor output, 100mA
PNP PNP transistor output, 100mA
Output current 100mA
Output form NPN or PNP dual output, NPN/PNP single output at the same time
Output status ON when all optical axes receive light
indicator light Launcher The yellow light is on and the power is on

Receiver Red and green two-color indicator light, when the light is not blocked (green), when the light is blocked (red)
Light resistant environment Sunlight: 10000Lx, white light: 3000Lx
Ambient temperature -25-+70°C (be careful not to condense or freeze)
Ambient humidity 35-95%RH
vibration resistance Frequency: 10-55Hz, amplitude: 0.75mm, 2 hours in each direction of X, Y, Z
Impact resistance Acceleration 300m/s, 2 hours in each direction of X, Y, Z
Insulation resistance AC1000V, 50/60Hz, 1 minute
Dielectric strength DC500V,20MΩ
Dielectric strength Equipped with special cable, 4-core emitter and 6-core receiver
Housing material Shell: Aluminum alloy End cover: ABS engineering plastic Bracket: Cold-rolled steel plate
Protective level IP68

尺寸图

tbhanquanguangmu2

接线图

anquanguangmujiexiantuTBA

场景图

场景图
