Ultrasonic sensors use the characteristics of sound waves to provide a contactless and accurate detection solution for detecting the status and distance of objects. By emitting mechanical sound waves with high frequency, the sensor receives the sound waves reflected back from the object. By calculating the time or energy between transmitting and receiving the sound waves, the precise distance or status of the target object is obtained. Ultrasonic sensors are different from ordinary proximity switches and photoelectric sensors. Compared with inductive or capacitive proximity switches, its detection distance is longer. Compared with photoelectric sensors, it can be used in harsher environments and is not affected by the color of the target, airborne dust, water mist, etc. Suitable for detecting different

model	KJT-U18B-50	KJT-U18BA-50
examination range	3-50mm	35-40mm
blind area	0-3mm	-
resolution	0.1mm	0.1mm
Repeat accuracy	±0.15% of full scale value
Accuracy	±1% (built-in temperature drift compensation)
Response time	2ms	10ms
On-off level	500Hz	100Hz
switching hysteresis	2mm	2mm
Power-on delay	<500ms
Operating Voltage	10-30V DC, UB≥12V
LED red light	No target, always on
LED green light	The target is detected and stays on.
Overload protection	200mA, red light and green light flashing at the same time
No-load current	≤30mA
Voltage drop	≤2V
input type	No learning function, but synchronization function
Material	Nickel plated copper sleeve, plastic fittings, glass filled epoxy resin
Protection level	IP67
Connection Type	5 core M12 connector
ambient temperature	-25℃~+70℃(248~343K)
Storage temperature	-40℃~+85℃(233~358K)

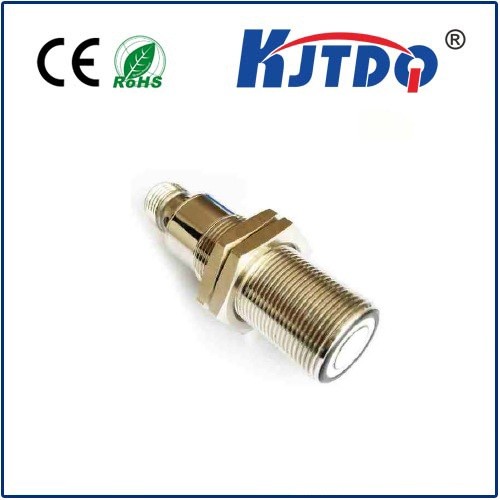

KJT-U18B-50


KJT-U18BA-50
