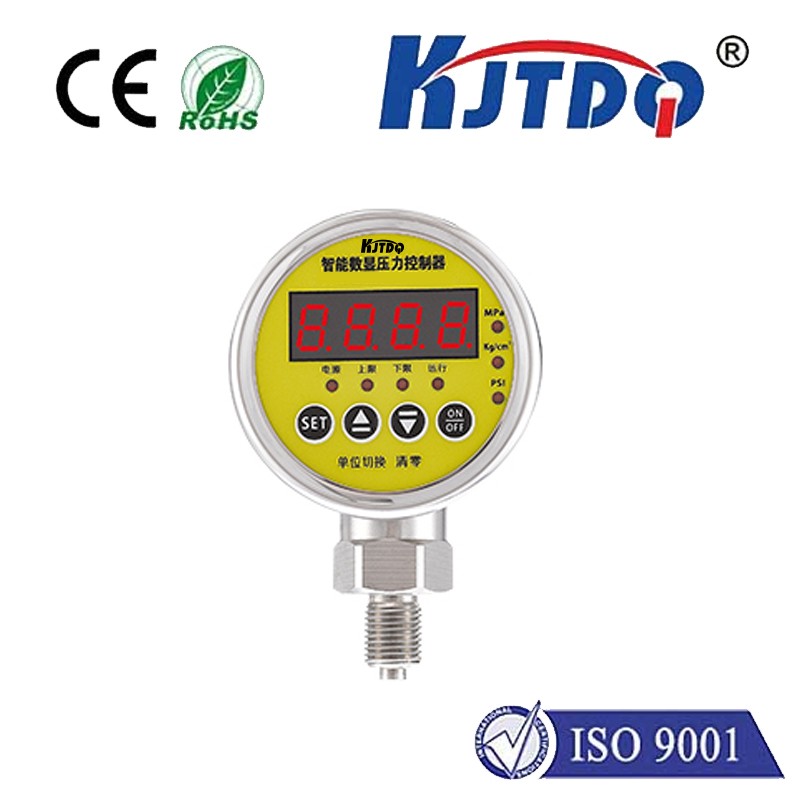

KJT-Z1240C intelligent digital display pressure controller can realize low-pressure stop, high-pressure start or low-pressure start, and the control function of high-pressure stop is adjustable in the full range of the pressure range of the controller. It has reverse control, delayed output, error clearing, free unit switching, pressure leakage protection, password protection, automatic pressure detection and other functions. It can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industry, automation machinery supporting and other measurement and control fields.

Type		Product Description
KJT-Z1240C		Axial intelligent digital display pressure controller
output method	1240C	Dual relay output
	2	NO
	3	NO＋NC
Transmission output	0	No output
	2	4-20mA output
Accuracy level	1	1％
	2	0.5％
process connection	A	20*1.5
	B	G1/2
	D
Power supply	W	DC24V battery powered
	A	AC220V power supply
Measuring range	-100kPa-60MPa	Customer choice
