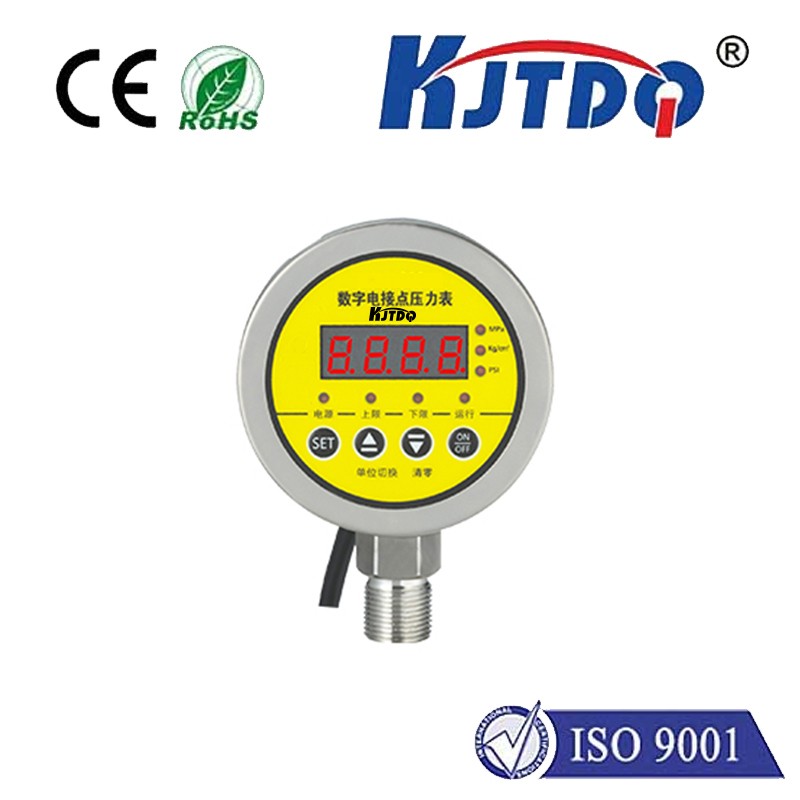

KJT-Z1640C Stainless steel digital electric contact pressure gauge

Products

KJT-Z1640C Stainless steel digital electric contact pressure gauge

  • Overload capacity:150%
  • Sampling rate:5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80°C
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switch RS485 communication interface
  • Product Detail

1

KJT-Z1640C stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and so on, easy to use, can be used in place of a mechanical pressure gauge, for portable It can replace the mechanical pressure gauge and be used for portable pressure measurement, equipment supporting, standard pressure calibration equipment, etc. Wide range of applications.


Type Product Description
KJT-Z1640C
Digital electric contact pressure gauge
output method 1640 Dual Relay Outputs
2 Normally open
3
NO+NC
Accuracy level 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply W DC24V battery powered
A
AC220V power supply
B AC380V power supply
Measuring range -100kPa-60MPa Customer choice





1



12 (1)
