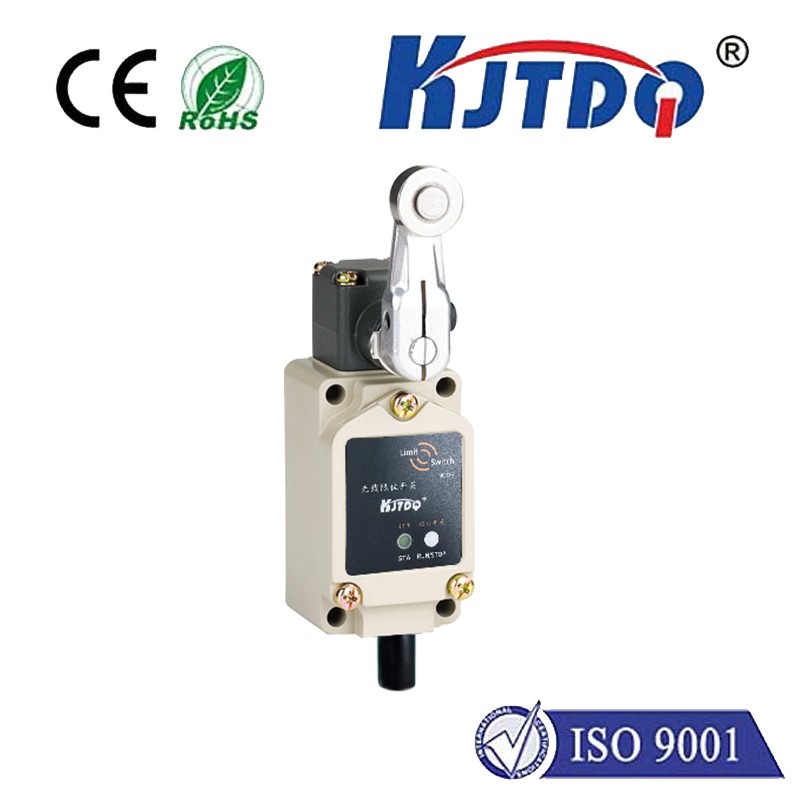

KJT47CSZK-04 wireless travel limit switch

Limit switch

KJT47CSZK-04 wireless travel limit switch

1:Connect using the 470-510MHZ 2.4GHZ standard radio band
2:License-free global radio connectivity
3:Communication range up to 1000 meters
4:Rugged one-piece cast aluminum alloy housing with high mechanical strength
5:Oil-resistant, waterproof and pressure-proof structure
6:15A 250VAC rated voltage
  • Product Detail

● There is no need to dig trenches and set up wires, which greatly reduces cable, labor costs and engineering cycles;

● Simplify engineering design and reduce designers’ workload (especially cable routing);

● Affected by natural terrain such as bridges, rivers, mountains, etc., cables cannot be laid arbitrarily;

● According to the increase of detection points, a private data collection network can be quickly established, with flexible and convenient expansion;

● When a fault occurs, the detection points are concentrated, eliminating the cumbersome tasks encountered in the past when inspecting along the line.

1


 Characteristics


Operation speed

1mm to 2m/S


Action frequency

Mechanically:120 times/minute Electically:30 times/Minute


Contact resistance

Under 15mΩ(initial)


Insulation resistance

100MΩ以上(500VDC) 100mΩ above (at 500VDC)


Bearing voltage


Non-contact end:1,000VAC,50/60Hz for one minute
Current parts and noncurrent parts and end and connect position :2,200VAC,50/60Hz for one minute


Vibration

Action:10 to 55Hz,1.5mm pairs swing


Hitting


Machine:1,000m/Sec2(about 100G,S)
Action:300m/Sec2(about 30G,S)


Ambient temperature

use: -10to +80℃


Humidity

Max 95% RH


Serve life


Mechanically:15,000,000 times above(at rated ot)
Electrically:500,000 times above


Weight

 About 258g


Protection structure

IEC specification:IP66/IP67


Model
KJT47CSZK-01

KJT47CSZK-02

KJT47CSZK-03


KJT47CSZK-04 KJT47CSZK-07 KJT47CSZK-08 KJT47CSZK-09

KJT47CSZK-06

KJT47CSZK-66

KJT47CSZK-68

KJT47CSZK-69

KJT47CSZK-05
Max OF 2720g 2720g 1000g 1420g 1360g 2720g 150g 1200g
Min RF 910g 910g 227g 280g 227g 910g - -
Max PT 1.7mm 1.7mm 20° 20° 20° 1.7mm 28mm 227g
Min OT 6.4mm 5.6mm 70° 70° 70° 4mm - 55°
MaxMD 1mm 1mm 10° 10° 10° 1mm - 35°
OP 34 ± 0.8mm 44.8± 0.8mm - - - 44.5 ± 0.8mm - 90 ± 10 °



2

无线行程开关 (3)

4

微信图片_20231220084304
