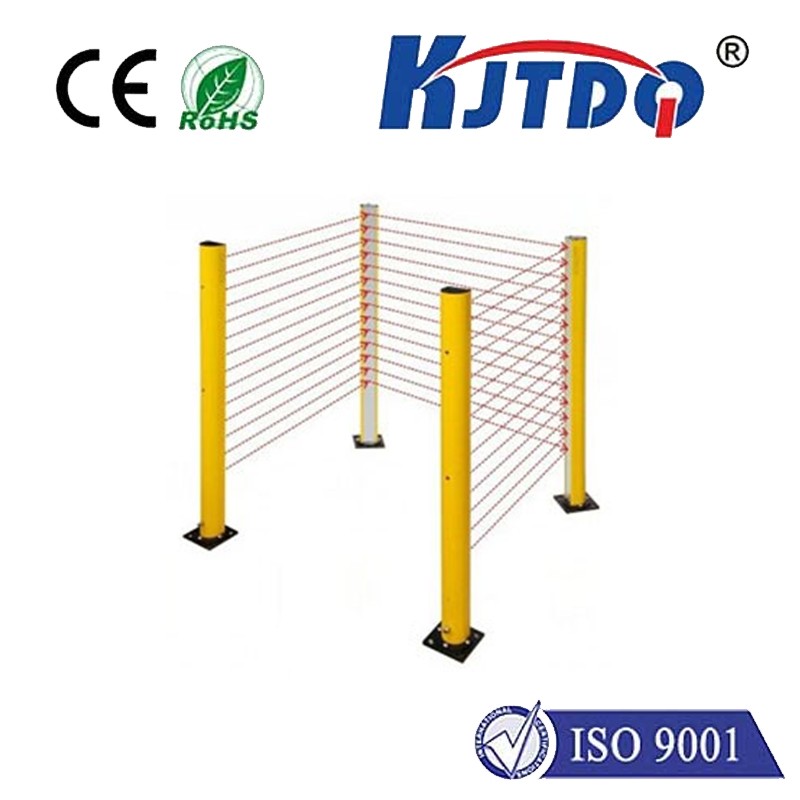

KJT-TBF series safety grating (safety light curtain), protection grade IP68, can work normally underwater, has strong light/electromagnetic interference, low power consumption design and short response time. High reliability, safe to use.
| Optical axis spacing | 10mm | 20mm | 30mm | 40mm | |
| Curtain type | Ultra-thin safety curtain | ||||
| Interface size | 10mmx22mm | ||||
| Product color | yellow | ||||
| Protection level | IP65/IP67(可选) | ||||
| Supply voltage | DC24V士10% | ||||
| Response time | ≤10MS | ||||
| Signal output | NPN/PNP/relay | ||||
| Sync type | Line sync/optical sync (optional) | ||||
| Number of optical axes | 8-94 bundle | 6-48 bundle | 4-32 bundle | 4-24 bundle | |
| Protective height | 70mm-982mm | ||||
| Protective distance | 0.1-2m/0.1-3m | ||||
| Light curtain form | Through-beam type | ||||
| Anti-interference ability | 10000Lux | ||||
| Shell material | Aluminum alloy | ||||
| Circuit protection | Reverse connection protection/output short circuit protection | ||||
| Power consumption | 3-8W | ||||
| Operating temperature | 一15℃+65℃ | ||||
| Ambient temperature | 20℃ RH≤85% | ||||
| Maximum load current | 200mA | ||||
