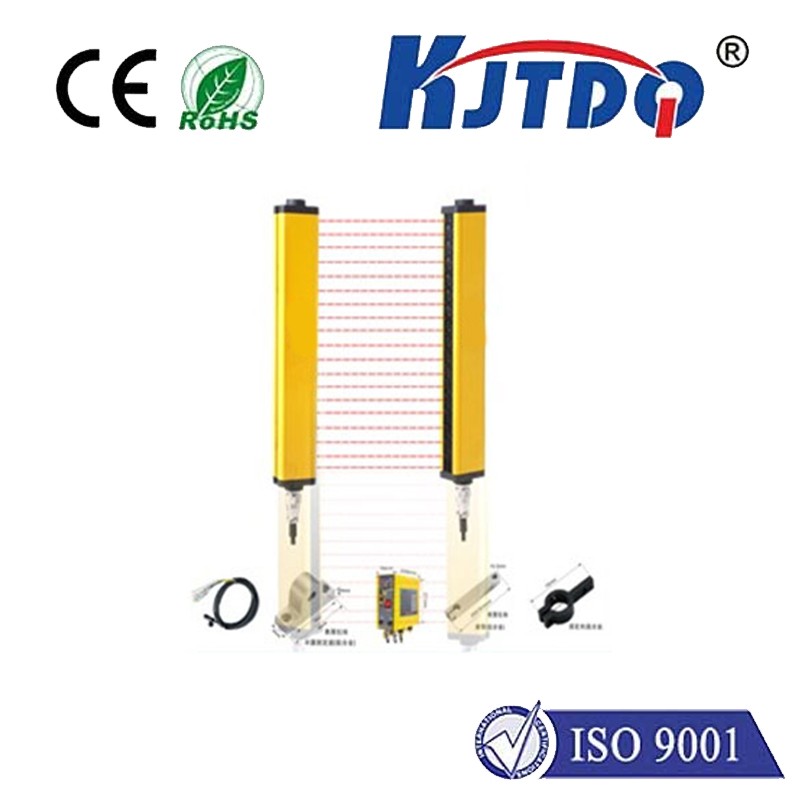

KJTTBH Measuring Safety Light Curtain

Safety light curtain

KJTTBH Measuring Safety Light Curtain

  • Product Model:KJTTBH
  • Optical axis spacing:10mm~40mm
  • Object size:φ15mm~φ45mm
  • Output:NPN/PNP
  • Detection distance:0-3M
  • Power consumption:<8W
  • Product Detail

KJT-TBF series safety grating (safety light curtain), protection grade IP68, can work normally underwater, has strong light/electromagnetic interference, low power consumption design and short response time. High reliability, safe to use.

主要技术参数


Optical axis spacing 10mm 20mm 30mm 40mm
Curtain type Ultra-thin safety curtain
Interface size 10mmx22mm
Product color yellow
Protection level IP65/IP67(optional)
Supply voltage DC24V士10%
Response time ≤10MS
Signal output NPN/PNP/relay
Sync type Line sync/optical sync (optional)
Number of optical axes 8-94 bundle 6-48 bundle 4-32 bundle 4-24 bundle
Protective height 70mm-982mm
Protective distance 0.1-2m/0.1-3m
Light curtain form Through-beam type
Anti-interference ability 10000Lux
Shell material Aluminum alloy
Circuit protection Reverse connection protection/output short circuit protection
Power consumption 3-8W
Operating temperature 一15℃+65℃
Ambient temperature 20℃ RH≤85%
Maximum load current 200mA

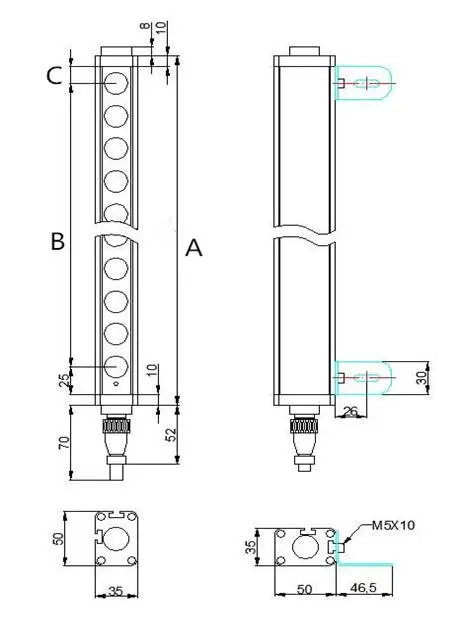

尺寸图


tbhanquanguangmu2

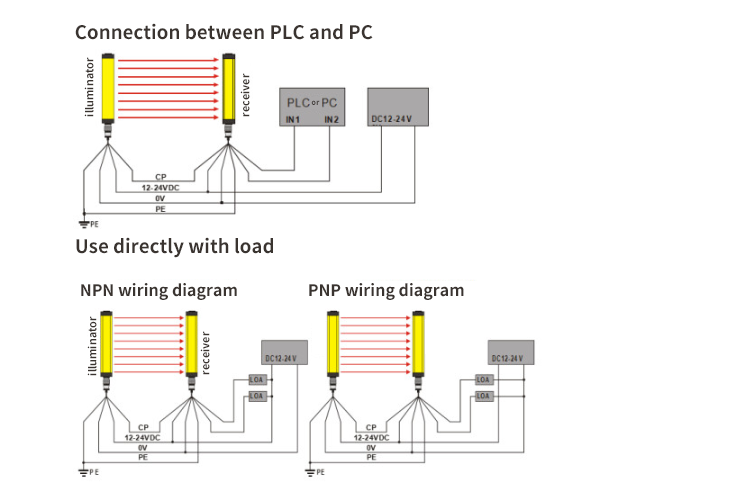

接线图


anquanguangmujiexiantuTBA

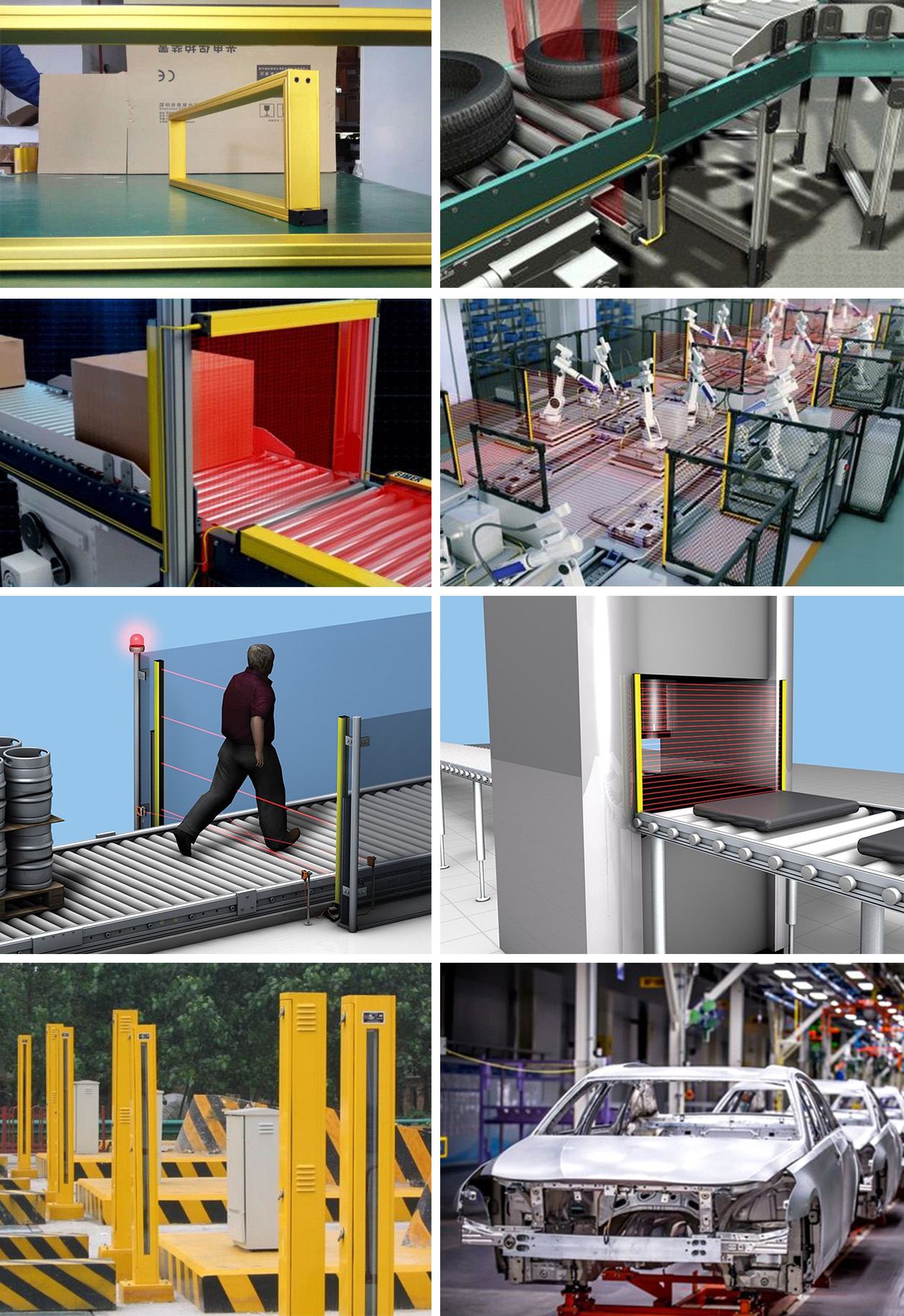

场景图

场景图
