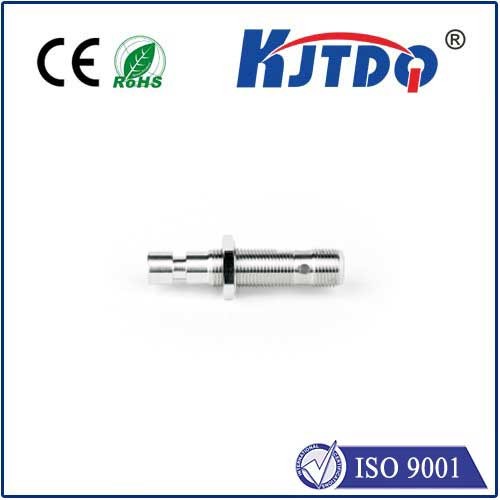

For the application environment of hydraulic transmission systems, Kaijit provides high-pressure resistant proximity switches that can be used freely in high-pressure, high-temperature and harsh environments. Its shell adopts corrosion-resistant materials and special sealing methods. Depending on the requirements of the application location, various products suitable for high pressures of 0-500bar can be provided. As for the requirements of shell diameter, thread size, etc., our company can also customize and provide them according to the specific needs of users. The sensing and output amplification parts of this product are integrated, and can be effectively controlled directly by a relay without the need for an additional amplifier. The sensor has two ways to output signals: a fixed sealed cable or an M12 plug connector.

● Detect various metal objects	DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions	DC 2NC
● Shell material: stainless steel	DC 3NPN NO
● Protection grade IP67(IEC)	DC 3NPN NC
● Ambient temperature:-25℃~70℃	DC PNP NO
	DC 3PNP NC



Product Model	KJT-GY14
Installation method	Flush
Detection distance	3mm
Working temperature	-25℃~+70℃
Specifications	M14-65
Operating Voltage	10-36V DC
Leakage current	<0.1MA
Withstand voltage value	500Bar
Ripples	<10%
No-load current	<5mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	1000Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<1.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	Connector M12,4-pin
Protection level	IP67/IP69K
Sensing surface material	Ceramic/EP
Shell Material	Stainless steel
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
