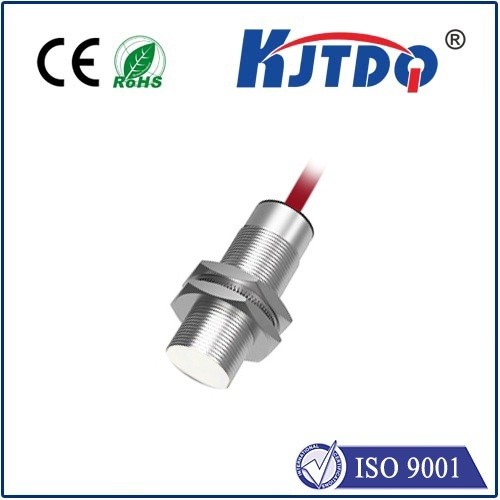

230°C M18 Flush High Temperature Proximity Sensor

High temperature proximity sensor

230°C M18 Flush High Temperature Proximity Sensor

  • Product Type:KJT-J18GWM
  • Installation Method:Non-Flush
  • Ambient temperature::-40~230℃
  • Detection Distance:5mm
  • Dimension:M18*55
  • Working Voltage:10-36VDC / 90-250VAC
  • Product Detail

KJT high temperature resistant proximity switches adopt a split approach and are used for detection, positioning and counting in high temperature and harsh environments. The probe can withstand medium temperatures of -25℃~230℃. This product operates stably in high-temperature environments of -25°C to 230°C and has high reliability, short circuit, and reverse polarity protection. Therefore, it is widely used in related manufacturing industries such as steel, metallurgy, glass, and chemical fiber plant transportation pipelines. At the same time, it can meet the requirements for detecting metals or non-metals in low-temperature and severe cold environments.


●Can detect various metal objects DC 2 NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2 NC
Shell material: Nickel-plated copper DC 3 NPN NO
● Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -25℃~+230℃ DC 3 PNP NC

AC 2 NO

AC 2 NC


1

Product Model
KJT-J18GW
Installation method Flush
Detection distance
1mm
Working temperature
-40~230℃
Specifications M18*1*55
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <1.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method 2M silicone wire
Protection level IP67
Sensing surface material PTFE
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2





外观尺寸

0d5e84300d0d63a87ee55fbfa8c8a9e2

尺寸

电容式接线图
